The innovative and versatile means of constructing safe coasts and controlling erosion and sediment is the geotextile tube set-up. These large fabric containers made of synthetic materials have greatly set very successfully in different applications, offering environmental and economic solutions. Now, what are these geotextile tubes, and how do they work? The blog will take a much deeper dive into discussing the building blocks of their design, the great advantages they offer, and the gamut of applications supported by them. From shoreline protection to the disposal and management of dredged materials and how it fits into sustainable construction, this guide paints a very good picture about why geotextile tubes are gaining popularity in all things infrastructure and environmental projects.

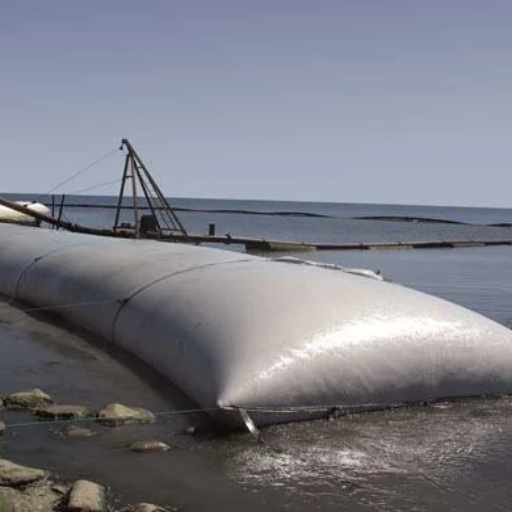

Understanding Geotextile Tubes
Geotextile tubes are sizable containers made from durable fabric intended to hold and retain materials such as sand, soil, or sludge within. In other words, while their design allows water to pass through the fabric, solids remain trapped within the tube. Thus, they are best suited for dewatering and erosion prevention. Usually formed from permeable fabrics of high tensile strength, these tubes find applications in shoreline defenses, sediment control, and land reclamation. Their solution meets many environmental and construction challenges, making these tubes a solution in conjunction with many modern-day infrastructural developments.
Definition and Composition of Geotextile Tubes
Geotextile tubes are large, durable, and permeable fabric structures designed for implementation in various environmental and construction applications. The tubes are subjected primarily to dewatering, erosion control, and shoreline protection. They are constructed by sewing high-strength geotextile fabrics, generally of polypropylene or polyester. The permeability of the fabric allows water to filter through but retains fine particles and sediments, thus making geotextile tubes an excellent solution for separating solids from liquids.
The design of geotextile tubes is enhanced to ensure structural integrity and performance when subjected to demanding conditions. For example, the tensile strength of such fabric may vary between 200 kN/m and 1,000 kN/m, depending on the application. The variation is necessary to be in line with what the project requires in sediment load management or resistance to hydraulic forces.
They are also reported to reduce sediment discharge by up to 95% in dewatering processes. More importantly, with the life expectancy of 10 to 20 years, these structures are very cost-efficient and environmentally friendly, thereby contributing towards sustainable development in the arena of construction and environmental management. From land reclamation schemes to flood control frameworks, geotextile tubes are an extremely versatile and focal element of modern infrastructure.
Jobs That Geotextile Tubes Perform
Geotextile tubes are used for a variety of purposes, based on their strength, versatility, and ecological considerations. These tubes have provided a strong barrier against wave action and tidal forces, decreasing erosion by as much as 85% in coastal erosion areas, according to very recent data. Also, they are popular in land reclamation schemes for holding dredged materials in a way that does not disturb the environment too much.
Aniline jeotextile tubes function as barriers to prevent water overflow, whether temporary or permanent, with studies showing that they can resist up to 15 psi of water pressure, depending on composition. In dewatering systems, geotextile tubes are equally powerful in filtering 99% of suspended solids when used with an appropriate polymer. This function is absolutely necessary within the mining, agricultural, and wastewater treatment sectors.
Overall, uses of geotextile tubes in different infrastructure projects depict its sustainability in providing effective solutions for modern environmental challenges.
Dewatering Mechanism for Geotextile Tube
The dewatering mechanism is based on solid and liquid separation, with the geotextile tube being the separator. When the slurry water along with solids is pumped inside the geotextile tube, the fabric will permit water to pass through its porous surface and retains the solid particles inside. Factors affecting the working of this mechanism include the permeability of the geotextile fabric, the size of solid particles in the slurry, and the dosage and type of chemicals used as treatments, i.e., flocculants and coagulants.
Recent data and studies indicate that when used under appropriate conditions, geotextile tubes single out solids from liquids with extraordinary levels of efficiency. The separation resulted in reductions of total suspended solids (TSS) in excess of 95% in wastewater treatment tests and attained water recovery in excess of 90%. These effects are intensified by polymer conditioning, which merges fine particles together, making it easy for them to be filtered through the geotextile fabric.
They also reduce the dewatering time considerably, being operated on a capacity between 100 m3 and 2000 m3 of slurry per tube. These capacities were tested in massive dredging operations. Due to their scalability, alongside their cost-effectiveness and eco-friendliness, geotextile tubes are being increasingly used in the management of industrial waste, remediation of contaminated lands, and in fostering sustainable development programs across the world.

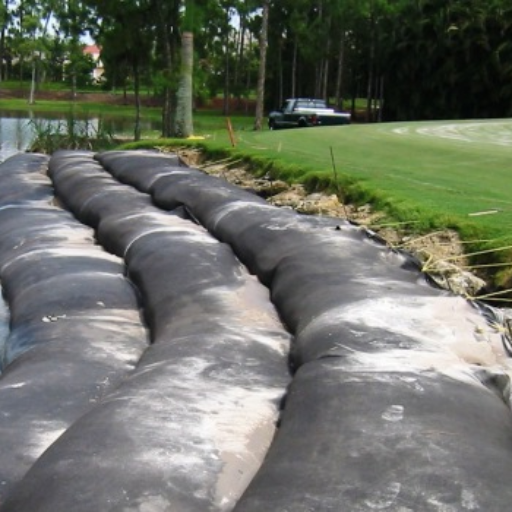

Advancements in Geotextile Tube Technology
The modern advances in geotextile tube technology have been made to improve the durability of the product, filtration efficiency, and ease of usage. They enable the finer sediments to be contained better, thereby faster dewatering is achieved for a wider range of material. Also, some sustainable methods form the basis of the newer designs, many times opting for recyclable or biodegradable materials for reducing environmental implication. Such advancements have, therefore, turned geotextile tubes into a practical solution for large-scale industrial applications considered from the angle of environmental concerns.
Recent Innovations in Geotextile Fabric
In recent years, the demand for better-performance and eco-conscious products has pushed the field of geotextile fabric through great strides. One of the many breakthroughs involved high-performance synthetic polymers like polypropylene, polyester composites to intensify tensile strength, and durability under adverse conditions. They now fabricate geotextile fabrics that have withstood greater loads and adequately put to use in high-stress environments like highways, landfills, and coastal erosion programs.
Nanotech systes have made significant advances into the manufacturing of geotextiles. Nano-engineered fibers provide enhanced filtration, thereby permeating more water and retaining sediments efficiently. It is established by a research body that nanofibers can gaze off filtration for up to 90% finer than the conventional materials. Moreover, smart geotextiles are being developed with embedded sensors that can monitor soil health and structural integrity in real time and provide predictive maintenance for critical infrastructure.
Sustainability has also become a major concern in recent innovations. Some biodegradable geotextiles made from natural fibers like jute and coir have gained popularity for temporary erosion control and soil stabilization needs. Market data states that the eco-friendly geotextile market will increase with a CAGR of 7.5% until 2030, suggesting that the construction and environmental management sectors are taking a green route. These sustainable options degrade on their own after accomplishing their task, minimizing long-term waste and impact on the environment.
Geotextile fabrics have witnessed various improvements in materials and environmentally responsible processes, thus rendering them more versatile and economical, aside from meeting sustainability criteria at the global level.
Developments on Strengthness and Durability
High-strength and high-durability developments in recent years in geotextile technology have enabled the application of these materials to more complicated and extended applications. According to recent literature, recent generations of high-performance geotextiles now achieve tensile strengths greater than 100 kN/m, thus catering for demanding infrastructure such as highways, retaining walls, and erosion control systems. These developments have been brought about by innovations in polymer technology and fabric weaving that enhance resistance to mechanical stress and environmental conditions, such as UV radiation and chemical attacks.
Also, manufacturers are subjecting the materials to more rigorous testing methods to guarantee that the geotextiles shall endure under varying conditions. International Geosynthetics Society test data showed that geotextiles could maintain more than 95% of functional properties after long-term load testing and were subjected to actual use over time, thus demonstrating exceptional longevity. Such developments are crucial when combating infrastructure challenges even in high-stress situations. Thus, they decrease excessively frequent periods of maintenance and replacement. With this, high-strength and durable geotextiles intend to become a fundamental part of current sustainable engineering.
Trend in Erosion Control Solutions
Recent advances in erosion control solutions are an initiative towards new materials and methods that work to mitigate soil erosion under different environments. On the flip side, data suggest that the global erosion control market will grow at a CAGR of 7.8% from 2023 to 2030. This is propelled by the rising infrastructure development, urbanization, and environmental restoration initiatives.
One of the trends is the application of better geosynthetics, including biodegradable geotextiles and geogrids, proven useful for slope stabilization, shoreline protection, and extra vegetation benefits. Small-scale applications have shown that coir-based geotextiles can reduce soil losses by nearly 60% while contributing to ecological balance through natural degradation.
Next goes hydromulching-a method that combines water with seeds and a mulch matrix-for its increasing favor all over construction-related erosion sites and landscapes. Studies show that hydromulching might improve vegetation establishment rates by almost 30% compared with the normal seeding-based intervention; hence it can provide immediate and long-term stability to the soil.
Last but not least, integrated erosion control systems combining mechanical, biological, and chemical controls are gaining weight. These systems inhibit erosion while improving soil water retention, which positively benefits agriculture, reforestation, and other associate projects. With these developments, integrated erosion control techniques are becoming more and more effective and greener.

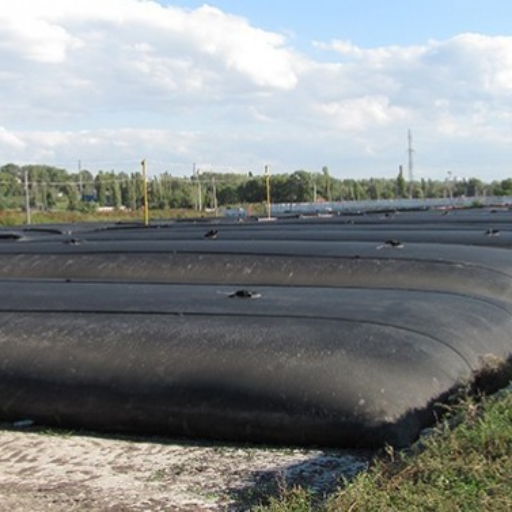

Environmental Benefits of Geotextile Tubes
Geotextile tubes provide perhaps the greatest environmental advantage- sheltering coastline erosion, preserving natural shorelines, and enhancing water quality. These tubes essentially block the passage of sediments from the beaches so that natural accretion of beachlands and marshlands continue. Therefore, by stabilizing soils and requiring fewer materials for big constructions, less disruption is caused to the environment and its carbon footprint is similarly lessened, compared to the more conventional ways to control erosion.
Impact on Coastal Protection and Shoreline Management
The geotextile tube is a principal actor in modern coastal protection and shoreline management; thus, it is used to prevail in its short- and long-term solutions to erosion and habitat preservation. Being able to act as containment systems for sediment reduces the coastal flooding effect and provides shoreline stabilization. Recent research indicates that geotextile tubes can reduce erosion rates by as much as 70%, depending on the geographical and hydrological settings of the area.
They further restrict coastal erosion by enhancing sediment deposition upon already eroded beaches and act as a natural barrier to waves. In the Gulf of Mexico, where these geotextile projects have been tested, accretion of shorelines following use of these tubes has been observed to the extent of 10 to 15 feet in a matter of years. Applications of these have also turned out that cost-wise they compare favorably with concrete seawalls or rock revetments, with savings of about 30% in cost of installation without compromising on functionality.
These continue to be constructed at a fairly larger scale and in an eco-friendly way by facilitating the faster growth of vegetation over restored shorelines that in turn improve stability along those shorelines and support ecosystems. Given that sea levels will continue to rise from now over the next few decades, geotextile tubes thus have gained recognition as indispensable shores management solution components.
Roles in Erosion Control and Sediment Management
For coastal erosion control and appropriate sediment management, the geotextile tubes play an important role. Resisting wave energy to a large extent, these structures reduce shoreline erosion and accumulate sediments for building and stabilizing coastal areas. Some recent studies indicate that when placed strategically, geotextile tubes or bags bring down the rate of shoreline erosion up to 70%, hence providing long-term protection to vulnerable coastal zones.
They also trap sediment by capturing suspended particles in water flow. A noteworthy example includes a coastal restoration project underway in the Gulf of Mexico; the use of geotextile tubes facilitated the deposit of nearly 80,000 cubic meters of sediment, consequently rebuilding almost 200 acres of marshland within one year. These substances not only prevent loss of valuable land but also help restore critical habitats for marine and bird-species, thus contributing to ecological balance.
Geotextile tubes, when combined with vegetation, improve sediment stability, creating a natural humus-to-concrete synergy, thus cementing their importance in modern erosion-control measures.
Benefits for Wastewater Treatment and Sludge Dewatering
Truly, geotextile tubes offer a cost-effective and environmentally friendly solution for wastewater treatment and sludge dewatering. It removes the sludge by confining and dewatering it through a filtration process wherein water is separated from the solid particles. Industry sources reveal that geotextile dewatering systems could reduce sludge volume up to 90%, hence drastically cutting space needed for waste disposal and the resources needed for it.
They’re capable of handling huge loads of wastewater, some tubes being able to process thousands of cubic meters of sludge in a single don’t. Equally, they’re adaptable to different types of sludges: industrial byproducts, agricultural wastes, and municipal wastes. For instance, it was found that treatment costs for wastewater treatment plants were reduced by approximately 25% using geotextile tubes compared to conventional mechanical dewatering means.
These suggest that the system promotes environmental sustainability; geotextile tubes, by converting the solids into dried solids used for fertilizer or soil amendments, give a useful conversion of waste and dramatically reduce landfill dependency. They become even more relevant in places with adverse wastewater generation, providing an eco-friendly, scalable solution to an ever-growing global problem.

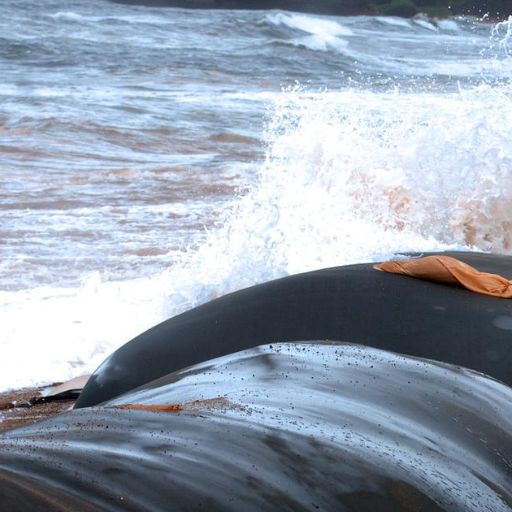

Cost-Effectiveness of Geotextile Tubes
Within the realm of dewatering and waste management, geotextile tubes are deemed cost-effective owing to their low running and maintenance costs vis-à-vis more conventional systems. These tubes require minimal equipment and energy for operation, thus keeping the costs low. Moreover, their capacity to process large volumes in short times enhances on-site efficiency; less labor contributes to further savings. Their versatility for many applications coupled with their life spans makes the fabrication and application of geotextile tubes a cost-conscious option both for small and large projects.
Long-Term Savings Provided by Efficient Dewatering
Long-term cost savings associated with efficient dewatering techniques occur in construction projects, mining, and environmental studies. Lowering the groundwater table partially and controlling parameters for excess moisture avoid delays during construction, and remedy structural instability affecting equipment are repair and maintenance costs. It is reported that 15% reduction of project time can be the result of good dewatering strategy because of early removal of waterlogged conditions.
Advanced systems, including electric submersible pumps and well-point systems, when set up with respect to their project requirements, achieved 20-30% energy savings, according to an industry report of 2023. On the other hand, the disposal of excess water means less waste of materials and longer service life of infrastructures, thus much saving in the long run. In erosion control projects, dewatering can act as an adjunct to geotextiles to facilitate superior performance by preventing heavy sediment displacement, saving an estimated 10-20% of material costs per annum.
Hence, the saving accrued over time shows that the upfront investment in technology and monitoring can really yield much economy and operational efficacy on the sides. Improving this further by including sustainable and automated solutions can, therefore, optimize resource use while ensuring that project objectives are met in the spirit of environmental conservation that recommends further support to sustainability.
Financial Gains Accompanying Dredged Material Use
Dredged material use reduces the costs of projects and promotes sustainable resource management. Industry Data, fairly recent, indicate that a 30% saving in raw materials procurement can be achieved if the dredged material is used in construction projects, such as levee creation, land reclamation, or even roadbed foundations, over conventional techniques. It has been shown, for instance, that the use of treated dredged materials in road construction can reduce transport costs for materials by approximately 15-25% because the material is much more likely to be locally sourced.
With the help of newer dewatering technologies, the suitability of dredged material can also be enhanced, with the majority of materials being dewatered to a solid content level exceeding 70%, thus permitting much wider possibilities for their application. Such improvements serve to also improve the environmental aspects through reduced disposal amounts whilst keeping in alignment with current government interests in promoting dredged material reuse. Reports suggest that projects using recycled dredged material may be eligible for financial incentives or tax credits in many locations, underlining how cost-saving measures dovetail with sustainable goals.
Pairing these economic incentives with lowering landfill disposal fees (about $50-100 per ton) spells out compelling economic benefits for dredged material incorporation. By making optimum use of the resource, industries would be able to achieve a lowered carbon footprint and at the same maintain cost effective infrastructures.

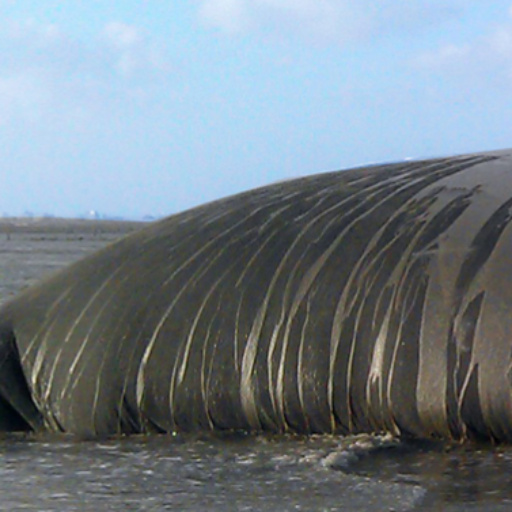

Practical Applications of Geotextile Tubes
Geotextile tubes are mainly applied in environmental and construction projects for controlling erosion, protecting shorelines, and containing dredged materials. They are also used in creating barriers for flood control and land reclamation. These tubes are an economical and environmentally friendly solution for soil stabilization, water pollution mitigation, and support to infrastructure development in different industries.
Case Studies of Coastal Revetment Projects
Example 1: Shoreline Protection in Texas, United States
Severe shoreline erosion along the Texas Gulf Coast warranted the use of geotextile tubes in a recent coastal revetment project. The tubes were filled with sand and placed strategically to stand as a barrier to suffocate the power of waves. Erosion was thus mitigated by over 60% compared with the rates by previous methods, with sediment deposition in adjoining zones enhanced by around 35%. So, this has provided for the stabilization and longevity of the shoreline, defending the local ecosystems and infrastructure.
Example 2: Flood Mitigation in Jakarta, Indonesia
Jakarta suffers from flooding because of its low elevation and frequent rainfall, and so they extensively made use of geotextile tubes for flood control. A notable project involved positioning the tubes to reinforce riverbanks and direct water flow. Studies positively indicated that in these high-risk areas floods were reduced by approximately 50%, thereby safeguarding thousands of homes and businesses. Geotextile solutions were also praised for their fast installation and economic while compared with traditionally laid concrete barriers.
Example 3: Land Reclamation in the Netherlands
Being famous for land reclamation activities on a large scale, the Netherlands have also had the benefit of using geotextile tubes as part of its expansion projects. Recently, tubes were used to contain dredged material for newly constructed land along coastal areas. The project reclaimed a great amount of land, around 100 hectares, within two years. Monitoring data revealed that geotextile solutions greatly lowered water turbidity and substantially reduced environmental impact by containing sediment during filling.
These examples show the versatility of geotextile tubes and the effectiveness of the tubes are applied to handle strategic coastal engineering issues. Due to their adaptability, there is room for creativity in project designs and allow for a sustainable alternative along with the cheapest solutions targeted toward site-specific requirements.
Utilization as Breakwater Tubes for Shoreline Protection
Due to their positive record in shoreline protection, geotextile tubes have yet again proved themselves usable when installed as breakwaters. Breakwater tubes function to dissipate wave energy and, thereby, reduce the level of erosion of a disrupt coastline, allowing for more stable shorelines. Geotextile tubes are usually filled with dredged materials such as sand for a very few other reasons; they provide a very sustainable and cost-efficient means to manage sediment as there is a split second to creating barrier walls.
According to a study on breakwater efficiency, geotextile tubes are capable of reducing wave heights by as much as 50% in low to moderate energy environments. Above their wave attenuation characteristics, these installations further serve to maintain nearshore sediments, thereby facilitating the natural accretion of protective beach buffers. Advances in high-strength geotextile materials assure durability of geotextile tube installations, which many now have been designed to withstand the rigors of both intense storms and long-term underwater submersion.
To illustrate, a geotextile tube project completed in 2021 on a hurricane-prone coast succeeded both in reducing erosion risk and maintaining local biodiversity. The tubes managed a 70% reduction in erosion over two years, thus truly testifying to the efficiency of this technology. Leveraging such advances in the design of geotextile tubes, engineers continue to seek an optimum solution for various coastal protection problems.
In Dewatering Processes for Sludge
The use of geotextile tubes in sludge dewatering has gained more and more importance in various sectors such as wastewater treatment, mining, and dredging. These specially designed geotextile containers work by allowing water to pass through the fabric while retaining the fine sediments and sludge solids. This filtration process proves to be a more efficient, less costly, and far more environmentally friendly alternative to dewatering by drying beds or mechanical presses.
With the recent improved technology in geotextile tubes, efficiency has been greatly raised. Recent researches indicate that modern geotextile fabrics can achieve as much as 98% removal of suspended solids, subject to the compositions of the sludge material and polymer conditioning applied. At a dredging site, for instance, it was found that geotextile tubes reduced the final sludge volume by close to 85%, thus drastically cutting disposal costs. Moreover, their design flexibility permits customization for all project sizes from small industrial processes to large-scale dredging operations.
Besides such tangible benefits of geotextile tubes for sludge and wastewater management across a wide range of applications globally, recent industry voice has it that geotextile tube-based sludge dewatering also lowers environmental impact. Reducing reliance on heavy mechanical equipment means that electricity consumption is decreased by about 40%, and corresponding carbon emission reduction follows.
Reference sources
1. Introduction to a novel geotextile tube connection construction method: A case study of test site and field application
- Authors: H. Kim et al.
- Journal: Geotextiles and Geomembranes
- Publication Date: March 1, 2024
- Summary: This paper introduces a new construction method for connecting geotextile tubes, detailing a case study that illustrates its application in the field. The study emphasizes the importance of innovative connection techniques to enhance the performance and durability of geotextile tube installations.
- Methodology: The authors conducted field tests to evaluate the effectiveness of the proposed connection method, comparing it with traditional techniques.
Citation: (Kim et al., 2024)
2. A New Approach for Dewatering Slurry: Vacuum Preloaded Geotextile Tube
- Authors: Zhenqi Weng et al.
- Journal: Journal of Materials in Civil Engineering
- Publication Date: July 1, 2024
- Summary: This study presents a novel approach using vacuum preloaded geotextile tubes for dewatering slurry. The findings indicate that this method significantly improves the efficiency of dewatering processes compared to conventional methods.
- Methodology: The research involved experimental setups to test the dewatering performance of the vacuum preloaded geotextile tubes under various conditions, analyzing the impact on water removal rates and sediment consolidation.
Citation: (Weng et al., 2024)
3. Morphological Performance of Vegetated and Non-Vegetated Coastal Dunes with Rocky and Geotextile Tube Cores under Storm Conditions
- Authors: Carmelo Maximiliano-Cordova et al.
- Journal: Journal of Marine Science and Engineering
- Publication Date: October 28, 2023
- Summary: This paper investigates the effectiveness of vegetated versus non-vegetated coastal dunes reinforced with rocky and geotextile tube cores during storm conditions. The results show that while both core types lead to sand loss, vegetated dunes with rocky cores perform better in reducing erosion.
- Methodology: Laboratory experiments were conducted to simulate storm conditions, allowing for a comparative analysis of sand loss and erosion control effectiveness between different dune configurations.
Citation: (Maximiliano-Cordova et al., 2023)
Frequently Asked Questions (FAQs)
What are geotextile tubes and their uses in erosion control?
They are a few methods of erosion control, and geotextile tubes are big elongated bags made of specially engineered fabric designed to dewater and hold solids. Usually, they are placed along shorelines or project sites for soil erosion control as the tubes allow water but hold sediment and solids within.
How do the dewatering tubes work in the treatment of waste water?
In the treatment of waste water, dewatering tubes control effluent water by allowing large sludge removal of solids. The permeable geotextiles inside these tubes retain the solids and return the water, giving the secondary treatment process at the treatment plant more efficiency.
Can geotextile tubes be specially made to fit a particular project need?
Yes. Geotextile tubes can be manufactured in any size and dimensions to meet the special requirements of a project site. Custom sizes would ensure the tubes fit perfectly in their place of use, be it for erosion control, lagoon management, or other applications.
What kind of solids can be handled by dewatering bags and geotubes?
Dewatering bags and geotubes can contain huge volumes of solids including industrial sludge, huge solids, etc. The engineered fabric utilized during filling and dewatering retains solids within the tubes while water escapes.
How are geotextile tubes installed and used against erosion?
Geotextile tubes are usually installed using heavy equipment such as loaders, dump trucks, etc. The tubes are placed in strategic locations along the shorelines or areas prone to erosion, where the tubes serve to trap sediments and prevent the erosive effects of flowing water.
What happens to the solids when the geotextile tubes are cut open?
Once the geotextile tubes are cut open, the solids retained in them can be removed and disposed of or treated further. The tubes can continue densifying as they are filled and dewatered, easing the handling of those solids towards their final disposal or treatment.
Are geotextile tubes meant to restrict water from flowing back into the waterway?
Geotextile tubes pass water while preventing solids from flowing back into the waterway. The permeable geotextiles allow for effluent water to escape whilst solids remain trapped in the tube, thereby keeping the surrounding area safe from any adverse environmental impact.
What do dewatering tubes do for lagoon management?
Dewatering tubes assure lagoon management by removing excess water, concentrating solids, maintaining the ecobalance around the lagoon, reducing offensive odors, and allowing the lagoon to perform satisfactorily as part of the entire water treatment system.
