The event that involved the local landfill in Southeast Asia during the year 2019, with the collapse of the containment system, investigation revealed that the cause was not the fix wrong alignment or subgrade settling at all. The engineering team, on the other hand, ordered the wrong material grade. In general, a normal high-density polyethylene (HDPE) liner and a chemically-resistant version cannot be compared. Aggressive leachate chemistry has permeated the membrane for 18 months to groundwater in a $11.5-million cleanup necessity.
The above illustration is the clear reason that the specification for use of geomembranes HDPE primarily depends not only on purely technical considerations but on the worth towards a win project, environmental safety, and final and total convenience, pure cost.
The end is a bright note if you are employed with the NK Engineering team or are project and procurement managers who are accountable for containment solution evaluations. We are about to talk about what generally constitutes HDPE geomembrane products, followed by their selection frames concerning thickness, application points suggestions, and ideal installation practices. Eventually, the vein of determination is made irresistible to prospects by making them decide on the most appropriate geomembrane for their project.
What you’ll learn in this guide:
- How HDPE geomembrane composition determines performance characteristics
- When to specify smooth versus textured versus conductive variants
- Thickness selection criteria based on application and regulatory requirements
- Key differences between HDPE and alternative geomembrane materials
- Installation requirements that ensure long-term performance

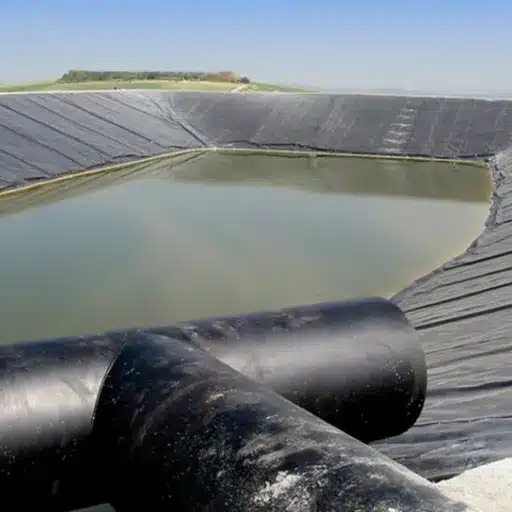

What Is HDPE Geomembrane?
Definition and Composition
HDPE geomembrane is a man-made, non-permeable membrane made of high-density polyethylene. This product is made up of more than 90% of polyethylene polymer, having a density of about 0.94 to 0.96 grams/cm³, and only contains 2-3% of carbon black for protection against UV-induced degradation.
The formation of the components is made possible using the flat-die cast and specific extrusion methods regarding the raw materials, polyethylene resin. Throughout the production, the material also contains carbon black, which is evenly distributed within the material, thus allowing the material to be exposed for the duration of its useful life without undergoing structural damage.
Key compositional characteristics include:
- High molecular density: Tightly packed polymer chains create excellent chemical resistance and tensile strength
- Crystalline structure: Provides dimensional stability and low permeability
- Carbon black content: 2-3% by weight ensures UV stabilization for 20+ years of exposed service life
- Thermal stability: Operational range from -60°C to +85°C
Key Physical Properties
HDPE geomembrane exhibits mechanical properties that make it the dominant choice for critical containment applications:
| Property | Specification | Significance |
|---|---|---|
| Thickness Range | 0.3mm – 3.0mm | Customizable for application requirements |
| Tensile Strength | 27 – 60 MPa | Withstands mechanical stress and ground movement |
| Elongation at Break | 600 – 700% | Accommodates settlement without failure |
| Hydraulic Conductivity | <1×10⁻¹⁷ cm/s | Virtually impermeable barrier |
| Puncture Resistance | 2.5 – 3.5 kN | Resists damage during installation and service |
| Service Life | 50-100 years (buried) | Long-term containment assurance |
The combination of high tensile strength and significant elongation capacity allows HDPE geomembrane to bridge minor subgrade irregularities while maintaining barrier integrity under load.

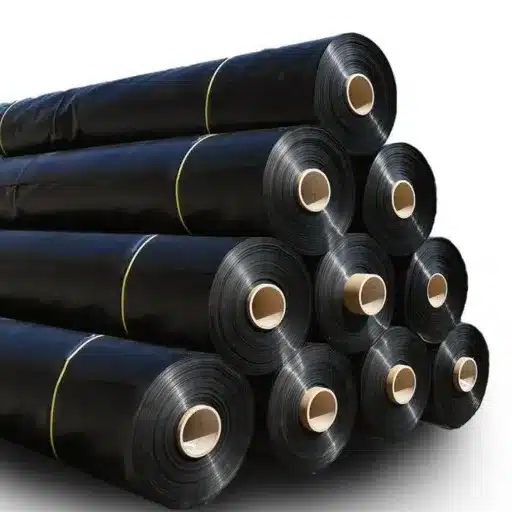

Industry Standards and Certification
Out of these components, the most essential parts of manufacturing processes that comply with the current international quality standards of HDPE geomembrane production are the following:
Basic Standards:
- GRI-GM13: Geosynthetic Research Institute specification for dimensions, upthrust resistances of the lowest Strength of HDPE geomembrane sheets and the required properties (least thickness, tensile strength, tear resistance, carbon black percent)
- ASTM D6693: Standard test method for tensile characteristics of geosynthetics.
- ASTM D6392: Standard test method for evaluation of the integrity of field seams.
- ASTM D5199: Standard test method for nominal thickness
Quality Assurance Specifiers:
- Control systems of production processes in the factory (Implementation of ISO 9001 at the production plant)
- Tensile strength, puncture resistance, and dimensional stability tests are performed for every batch
- A certificate of analysis for every produced lot
- Sample retention programme (5 years for reliability)
Demand that suppliers, among others, present compliance reports against these standards when considering any specific supplier. The compliance standard of GRI-GM13 confirms that the product is able to provide critical containment applications.

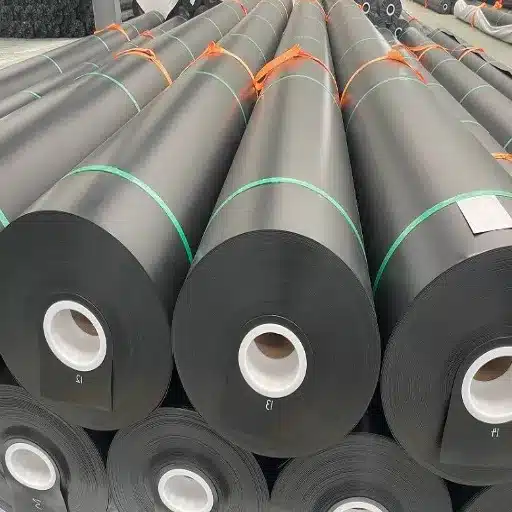

Types of HDPE Geomembrane
Not all HDPE geomembranes serve the same function. Surface texture and specialized formulations create distinct performance characteristics for specific engineering challenges.
Smooth HDPE Geomembrane
Smooth HDPE features a flat, uniform surface on both sides. This is the most common and cost-effective variant.
Characteristics:
- Uniform thickness distribution
- Highest seam strength potential (optimal welding surface)
- Lowest coefficient of friction
- Easiest to clean and inspect
Best Applications:
- Landfill base liners on flat terrain
- Reservoir and pond liners
- Wastewater treatment lagoons
- Aquaculture ponds
- Secondary containment systems
When Marcos deployed a smooth 1.5mm HDPE liner for a 5-hectare irrigation reservoir in Latin America, the flat subgrade allowed for efficient panel deployment. The smooth surface enabled rapid welding at 25 meters per hour, completing the 12,000 square meter installation in just four days. The project has operated leak-free for three years.
Textured HDPE Geomembrane
Textured HDPE features a roughened surface (single or double-sided) that increases friction coefficient by approximately 10% compared to smooth variants.
Characteristics:
- Asperity height typically 0.25-0.50mm
- Increased interface friction angle (25°-35° depending on subgrade)
- Enhanced slope stability
- Slightly reduced seam efficiency (requires adjusted welding parameters)
Best Applications:
- Landfill side slopes (>20° inclination)
- Mining heap leach pads
- Steep embankment lining
- Canal slopes
- Any application where slope stability is critical
The textured surface creates mechanical interlock with the subgrade or overlying soil, preventing slippage on steep inclines. For slopes exceeding 30°, textured HDPE is typically specified in combination with anchor trenches at the crest.
Conductive HDPE Geomembrane
Conductive HDPE incorporates a conductive layer (typically carbon black-enriched) that enables electrical leak detection surveys.
Characteristics:
- Electrical conductivity throughout the membrane
- Compatible with spark testing and water lance methods
- Enables post-installation integrity verification
- Higher cost than standard HDPE
Best Applications:
- Hazardous waste landfills
- Primary containment for aggressive chemicals
- Critical water containment
- Regulatory-mandated double-liner systems
- Any application where leak detection is required
Specialized Variants
White Surface HDPE:
- Reflective white coating reduces surface temperature by 15-20°C
- Minimizes thermal expansion stress
- Ideal for exposed applications in hot climates
- Reduces UV degradation rate
Reinforced HDPE:
- Laminated with geotextile or mesh between HDPE layers
- Superior tear and puncture resistance
- Used in high-stress industrial applications
Colored HDPE:
- Green, blue, or custom colors for aesthetic requirements
- Common in landscape and recreational water features
HDPE vs LLDPE Geomembrane: Key Differences
It is common for engineers to choose between using High-Density Polyethylene (HDPE) and Linear Low-Density Polyethylene (LLDPE) geomembranes. In order to specify their use appropriately, it is necessary to grasp the geosynthetic material behind each of them.
Molecular Structure and Density
HDPE:
- Highly crystalline structure with minimal branching
- Density: 0.94-0.97 g/cm³
- Tight molecular chain packing
- GRI-GM13 standard compliance
LLDPE:
- Significant short-chain branching
- Density: 0.91-0.94 g/cm³
- More amorphous structure
- GRI-GM17 standard compliance
A density gap serves as the basis for the definition of these parameters. The crystal lattice of HDPE geomembrane renders improved resistance to chemicals and enhances tensile properties, while the atomically arranged branching in LLDPE correlates with more flexibility.
Mechanical Properties Comparison
| Property | HDPE | LLDPE | Engineering Implication |
|---|---|---|---|
| Tensile Strength | 27-60 MPa | 13-30 MPa | HDPE withstands higher mechanical loads |
| Elongation at Break | 600-700% | 800-900% | LLDPE accommodates more ground movement |
| Flexibility | Stiff, rigid | Highly flexible | LLDPE conforms to irregular surfaces |
| Puncture Resistance (2.0mm) | >640 N | >480 N | HDPE better for rocky subgrades |
| Stress Crack Resistance | Fair | Excellent | LLDPE superior for thermal cycling |
When to Specify HDPE
Opting for HDPE geomembrane is preferred in the case of:
- Aggressive chemical exposure: major resistance to: acid, alkali, hydrocarbons, and certain solvents (pH 2-12)
- High mechanical loads: Mining operations, including dry landfills, as well as much heavy overburden
- Long-term durability needs: 50-100 years of design life specification
- Flat to moderate slopes: <30° inclinations where flexibility is less critical
- Regulatory compliance: Projects requiring GRI-GM13 certification
- Reduction in costs: Material costs are generally lower than those of LLDPE.
When to Specify LLDPE
Choose LLDPE geomembrane when your project involves:
- Irregular or rocky subgrades: Better conformity to uneven surfaces
- Settlement-prone foundations: Higher elongation accommodates ground movement
- Cold climate installations: Maintains flexibility at low temperatures
- Complex geometries: Easier detailing around pipes and structures
- Steep curves and corners: Flexibility enables tighter bend radii
- Faster installation: Easier handling reduces labor time
Combined System Approach
The most critical structural designs incorporate two types of material: HDPE for the base liner itself, where the concerns are largely strength and chemical resistance, and LLDPE for the cover systems or secondary liners, where settlement accommodation is critical.

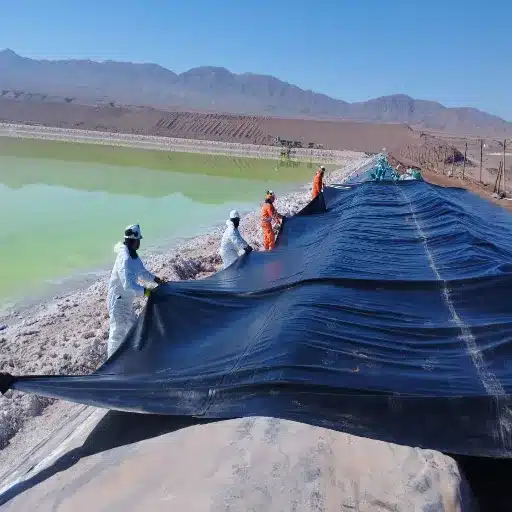

Applications by Industry
HDPE geomembrane dominates approximately 70% of the geomembrane market, valued at .23 billion globally in 2025. This market position reflects its versatility across industries.
Environmental Protection
Landfill Liners and Caps:
For municipal solid waste landfill liners, the EPA typically requires a minimum 1.5mm (60 mil) HDPE geomembrane. The material is also resistant to leachate compounds and has a 50-100 year life span (matching landfill closure requirements).
Typical Liner System for Landfill:
- Compacted Clay Subgrade
- Geosynthetic Clay Liner (GCL) or secondary geomembrane
- Primary geomembrane HDPE; 1.5-2.0 mm thickness
- Geotextile protection layer
- Leachate collection system
Hazardous Waste Containment:
Hazardous waste applications require 2.0-2.5mm HDPE, including a conductive layer for leak detection. The product is essential in waste management industries, considering the kind of soil it maintains against leachate and soil, as well as protection against aggressive chemicals (solvents, acids, and heavy metals).
Leachate Ponds:
Groundwater contamination by leachate and here HDPE-lined leachate collection ponds are used to protect groundwater. The impermeable wall has primarily taken care of groundwater circulation and consists of a leakage rate below acceptable standards of 1×10⁻¹⁷ cm/s permeability.
Mining Operations
Mining represents one of the most demanding geomembrane applications. HDPE’s puncture resistance and chemical stability are critical for:
Heap Leach Pads:
- 2.0-3.0mm textured HDPE for slope stability
- Chemical resistance to cyanide and acid solutions
- High puncture resistance for ore loading operations
Tailings Storage Facilities:
- Double-liner systems for environmental protection
- 2.0mm+ HDPE primary liner
- Leak detection between liner layers
Solution Ponds:
- Pregnant and barren solution containment
- Chemical resistance to process solutions
- UV stability for exposed applications
When a copper mining operation in Chile specified HDPE geomembrane for their heap leach pad, the 2.5mm textured liner withstood three years of daily ore stacking (up to 50 tons per load) without puncture or degradation. The project manager attributed the performance success to proper thickness specification and subgrade preparation.
Water Management
Reservoirs and Irrigation Canals:
Compared to earthen canals that are not lined, HDPE geomembranes can lessen seepage losses by 95%. A model specification would include the following:
- 0.75-1.0 mm for irrigation reservoirs
- 1.0-1.5 mm for potable water storage
- Smooth surface for optimal flow characteristics
Wastewater Treatment Lagoons:
HDPF with 1.5mm thickness is used by municipal and industrial wastewater facilities to prevent contamination of groundwater. Material resistance with chemical keeps it working well in various pH and organic compounds.
Stormwater Detention:
HDPE-lined detention systems are designed to retain stormwater in a limited manner, preventing damage caused by rooted infiltration or undermining of structures as a result of water saturation in the soil.
Aquaculture and Agriculture
Aquaculture Ponds:
Fishing operations have been using 0.5-0.75mm HDPE liners for aquaculture ponds:
- Effective seepage prevention (important in water scarcity regions)
- NSF/ANSI 61 approved for Food Safety
- Easy Cleaning and Maintenance
- Prevention of Predator and Soil Contamination
Agricultural Irrigation:
- Protection linings of canals meant for water conservation
- Water from On-farm Reservoir Construction
- Soil Moisture Management

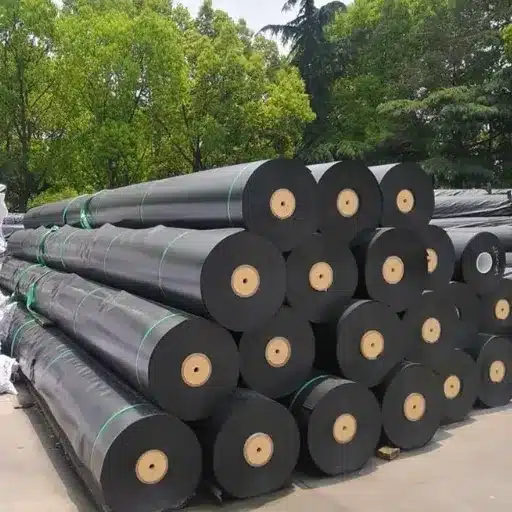

How to Choose HDPE Geomembrane Thickness
Thickness selection is the most critical specification decision. The wrong choice risks premature failure or unnecessary cost. The right choice balances performance, longevity, and budget.
Thickness Selection by Application
| Application | Recommended Thickness | Regulatory Standard |
|---|---|---|
| Decorative ponds, temporary covers | 0.5mm (20 mil) | General practice |
| Aquaculture ponds | 0.5-0.75mm (20-30 mil) | Industry standard |
| Irrigation reservoirs/canals | 0.75-1.0mm (30-40 mil) | Best practice |
| Municipal solid waste landfills | ≥1.5mm (60 mil) | EPA minimum requirement |
| Hazardous waste landfills | 2.0-2.5mm (80-100 mil) | RCRA Subtitle C |
| Mining heap leach pads | 2.0-3.0mm (80-120 mil) | Industry/engineering specification |
| Wastewater treatment lagoons | 1.5-2.0mm (60-80 mil) | State/provincial regulations |
| Tunnel waterproofing | 1.5-2.0mm (60-80 mil) | Engineering specification |
Selection Factors
Subgrade conditions (most critical):
- Smooth, well-compacted clay or sand: 0.5mm to 1mm is good enough
- Rocky or gravel soil: 1.2-2.0 mm will be needed, with a geotextile cushion
- Sharp debris or construction debris: 1.5-2.5mm advisable
Water depth and hydrostatic pressure:
- >5 m depth: 1 mm sufficient
- 5 m depth: 1.5 mm for localized stress
- Deep Reservoir (>10m): Engineered analysis
Chemical exposure:
- Mild chemicals: fertilizers, low pH water: 0.8-1.2mm
- Highly aggressive chemicals: industrial acids or solvents: 1.5-3mm
- Diffusion paths increase with the thickness of the membrane
Service life requirements:
- 10 – 15 years: 1.0 mm with quality carbon black
- 20+ years: 1.5mm will provide an added buffer for degradation
- 50+ years: 1.5-2.0mm and properly installed
Mechanical Loading:
- Static loads (soil cover): Normal thickness
- Dynamic loads (equipment traffic): More than 2mm or PlastiCor HDPE reinforced
- Point loads (structural supports): Locally reinforced
Cost Considerations
Even though per square meter thicker geomembranes cost more, these differences in initial project costs usually have no real effect. A 1.5mm liner costs 25 per cent more than 1.0mm, but has a very durable lifetime of puncture resistance.
Rule of thumb: Use the minimum gauge possible to meet all performance criteria, without over-engineering. Overspecification often goes hand-in-hand with complexity in material and installation, but without any associated benefits.
Installation Best Practices
Even the highest-quality HDPE geomembrane will fail if improperly installed. Following established procedures ensures design performance.
Subgrade Preparation
The proper preparation of the subgrade can reduce 80% of geomembrane problems.
Surface Requirements:
- Compact to 95% standard Proctor density
- Eliminate all rocks >2cm in diameter
- Eliminate all tree roots, organic material, and debris
- Fill depressions with compacted sand or fine gravel
- The surface must be clean, dry, and free of any oil or other contaminants.
Cushion Layer:
If your subgrade consists of rocks or is aggressive, set up a 300-500g/m² non-woven geotextile cushion layer:
- Puncture-resistive
- Drainage plane
- Stress distribution
Acceptance Criteria:
- There should be no voids nor soft spots.
- Surface smoothness within ±25mm
- Proof-rolling with a laden dump truck without ruts in the way.
Deployment Guidelines
Panel Layout:
- Unroll panels in the direction of the slope or water flow.
- Placement tension 0% should be maintained.
- Allow for thermal expansion and the normal formation of wrinkles.
- Overlap: for flat areas 100 mm minimum, for slopes > 10%, use 150 mm
Weather Considerations:
- Install in dry conditions
- Avoid installation during rain, snow, or high humidity.
- Optimum welding process temp: 5°C to 35 °C
- Max wind speed < 30 km/h to prevent any movement of panels.
Welding Requirements
HDPE geomembrane is heat-welded for a continuous barrier:
Hot Wedge Welding (for the site seams):
- Temp supply line: 250-300°C
- Speed: 15-25 m/min
- Pressure: As required by the fabricators or vendors
- Seam width: Minimum bonded 25mm strip
Extrusion Welding (for details and repairs):
- Used for pipe penetration, corners, and repairs by detail
- A technician certification is required for the skill
- Minimum 50mm overlap on repairs
Quality Control:
- Trial welds daily (300×600mm samples)
- Destructive Testing: Shear and peel strength
- Acceptance criterion: The base material fails before the junction
- Nondestructive Tests: Air lance or vacuum box applied to each seam.
Common Installation Mistakes
Poor Subgrade Maintenance:
There will inevitably be puncture damage caused by sharp objects, regardless of gauge. A 5-cm-sized rock blows a 2.0-mm-sized liner right through.
Improper Seam Welding:
About a quarter of liner failures are due to faulted seams. Proper temperature, a rate of speed, and pressure are of high importance in this respect.
Not Compensating for Thermal Expansion:
HDPE expands by about 2% per every 10° C that it experiences. Wrinkles are normal when installing and will stretch with soil cover or load water without the wrinkling being remedied by more stretching or cutting.
Poor Installation and Embedding:
Fifteen percent slope failure is from poor anchor trench design. Anchor trenches at crests of slope should have a minimum depth of 30 cm.
Heavy Traffic of Heavy Equipment:
Do not operate any machinery directly on the specified liner; fill at least 15cm of earth material first.
Quality Standards and Certification
HDPE geomembrane quality verification involves multiple testing protocols throughout manufacturing and installation.
Manufacturing Quality Control
Batch Testing Requirement:
- Characteristic of Elongation (ASTM D6693): There should be at least 14.2 MPa in yield strength.
- Tearing Resistance (ASTM D1004): Minimum Values Under the Thickness
- Impact Test (ASTM D4833): Standard Gradations: 2.5 to 3.5 kN.
- Percentage of Carbon Black (ASTM D4218): From 2 to 3 percent by weight
- Size Stability: ±2 per cent maximum
Certification Documentation:
- COA for each batch of production
- MTR should contain actual values and not just pass-fail
- Chain of custody documentation
- ISO 9001 Certification of QMS
Field Quality Assurance
Pre-Installation:
- Visual inspection of all rolls for defects
- Thickness verification at delivery
- Storage protection from UV and contamination
During Installation:
- Daily trial weld testing
- Seam destructive testing (minimum 1 per 150 meters)
- Non-destructive seam testing (100% coverage)
- Documentation of repairs
Post-Installation:
- Electrical leak detection surveys (for conductive liners)
- Water flood testing, where applicable
- As-built documentation
The Value of Sample Retention
Leading manufacturers retain production samples for 5+ years. This enables:
- Future forensic analysis if issues arise
- Batch traceability
- Verification of as-delivered properties
When evaluating suppliers, confirm their sample retention policy. This demonstrates commitment to quality accountability.
Conclusion
HDPE geomembrane is used in critical containment applications due to its enhanced performance of major properties, revolutionary chemical stability, toughness, and strength properties as well as durability of the product for many decades. Engineers prefer to use this material for a span of 50-100 years due to its impermeable nature with permeability equal to less than 1*10^(-17) cm/s, which has been recommended by more than a few landfills, mines, and water storage structures in the past.
Key takeaways for your next project:
- Choose an appropriate type: Smooth surface shall be used for flat and Non-Slip type for slopes, while conductive type will instead be specified in case those types are used for leak detection.
- Determine thickness from collateral risks: Conditions related to subgrade, chemical exposure, and regulation, not related to the amount only.
- Demand compliance documentation: GRI GM13-certified and test reports accredited by ASTM in attesting to the claims of performance.
- Invest in installation quality: Proper subgrade preparation and certified welding technicians prevent field failures.
- Cost of total lifecycle: While the initial cost may be high, longer life makes thicker liners more cost-effective.
The municipal landfill or mining leaching pad, for that matter, if it is an irrigation reservoir, HDPE geomembranes make engineering strength and reliability necessary for the project.
Ready to specify HDPE geomembrane for your project?
Our engineering team will offer you with guidance on specifications, suggest the best coating thickness, and develop a customized solution for projects across the globe. Kindly provide us with the project requirements for targeted suggestions and quotes.
Frequently Asked Questions
What is the difference between HDPE and LLDPE geomembrane?
HDPE has higher tensile strengths (27-60 MPa against 13-30 MPa) and is better suited to chemical attack. Hence, it becomes the best liner material for aggressive environments. LLDPE offers greater flexibility, elongation (800% to 900% verses 600% to 700%), more suitable for uneven surfaces and places that are prone to settlement.
How thick should the HDPE geosynthetic be for the liner of a pond?
0.5mm to 0.75mm is considered normal for fish ponds and ornamental and decorative ponds. For irrigation reservoirs, 0.75mm to 1.0mm is more durable and lasts for a longer period. For minimum Municipal trash disposal sites, 1.5mm is required by the requirements of the US EPA. A strong recommendation of at least 2.0-2.5mm is generally required from the regulatory authorities for hazardous waste plants.
What is GRI-GM13 compliant?
GRI-GM13 is a standard for geomembrane specifications that stands for Geosynthetic Research Institute. If any geomembrane meets all the requirements defined, minimum tensile strengths, tear resistance, carbon black content, and other critical requirements are possible. Compliance with the GRI-GM13 ensures that the material performance is benchmarked within the industry.
How long does HDPE geomembrane last?
UV exposure of HDPE will tend to make its life as such around 20-30 years, whereas in the ground, it is expected to have a life of between 50 and 100 years. The carbon black content (2-3%), by providing for the stabilization of ultraviolet radiation, and chemical inertness, by which the material does not react chemically in contact with soil, keeps this material going strong.
Can a damaged HDPE geomembrane be repaired?
Yes. It needs to be prepared, and then parts are cut out. Clean it to perfection. Small punctures and tears can also be fixed by patch welding with extrusion welders. Damaged segments are taken out, cleaned, and then covered, where the HDPE material is welded to provide full joint efficiency. Similarly, all repairs are tested using the vacuum box or an air lance.
