Proper waste management becomes a restorative endeavor of society through progress and applies to the terminal layers in landfills; also, all these aspects are highly impressive. Almost every country in the world has shown great progress and advances at times with the help of Geosynthetic Clay Liners, perhaps that being one of the greatest advances of all time. In particular, this report explains why governments today would help make the world a more sustainable place, and why GCLs, present in most modern sand bentonites, which contain GCL waterproofing, offer improved durability and reliability of the linersand have a positive effect on the environment. Lastly, they would also be provided with the example materialsthat will explain how and why improved GCLs CRP are superior to ts and everything else. You may also be interested in reading this article, which discusses the issue of landfill design and construction methods applied with GCL technology.

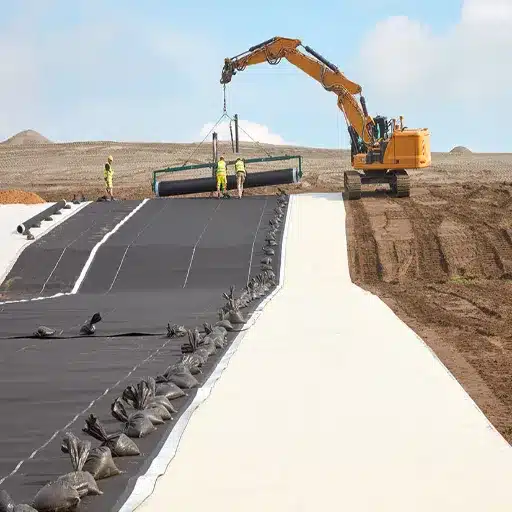

Understanding Geosynthetic Clay Liners
Definition of Geosynthetic Clay Liners
Geosynthetic Clay Liners (GCLs) are products suitable for the industry that finds its use as hydraulic barriers created from bentonite clay encapsulated within a geotextile sandwiched between two geotextiles or a geomembrane. But with this aim, they are forming a strong protective umbrella and preventing fluid migration. It is therefore applicable in the field of environmental engineering as landfill liners, ponds for tadpoles, and reclamation, among many others. Bentonite clay, as explained, exhibits high swelling tendencies in the GCL liner. This phenomenon is known as expansion, so that moisture is retained cover of clay encapsulating the lining, which gives rise to the utilization of different lining systems.
The present-day way of making Geosynthetic Clay Liners makes it workable to endure the higher regulatory layers. The research in question indicates that the GCL’s hydraulic permeability is as low as 5×10^-9 cm/s, which is also the industry benchmark, and it can be even better than the controlled compacted clay liners (CCL) techniques. Also, working with geosynthetic clay liners involves less time as they are relatively lighter (narrower) than the ordinary compacted camber liners and therefore use very little or no materials to build labor saving hence highly economical. The overall demand for GCLs over the world has been rising with an appreciable Compound Annual Growth Rate (CAGR) estimated at 5% between the years 2023 and 2030. This is due to the increased number of GCL installations and the contents of the structures being contained, and the use of the materials leaning more towards aspects of green buildings.
Furthermore, geosynthetic clay liners increased the ability of this technology with the insertion of bentonite compounds and were capable of withstanding exposure to complex long-term arid conditions or chemicals. Such aspects, in addition to being low-cost, easy to move, and easy to install as opposed to CCLs, often prompted onlining of a GCL liner during an infrastructural project, even in most challenging situations.
Functionality and Purpose of GCLs
Geosynthetic Clay Liners (GCLs) are a type of containment system that involves a newer system of containment technology used in different areas like waste management, geotechnical, mine waste containment, and water preservation. They specifically and precisely in accordance with design, help in controlling the transport of moisture and air in any engineered system. The Geosynthetic clay liners or GCL liner consists of layers of pure bentonite clays and geotextiles, or in some cases, geomembranes that provide excellent hydraulic properties by applying the concept of extremely low permeability. Hence, in the construction of new landfills, internal lining of tanks, channels, and such other works, these materials are most Suitable as they do not allow the contamination of environmental components (senal) and are strong enough for an indefinite duration.
According to recent market studies, the value of the global GCL industry was estimated at approximately USD 450 million in 2022 and is projected to expand during the forecast period of 2023-2030 with a growth rate in the range of 5% to 6%. The implementation of Geosynthetic Clay Liners in waste management and strict containment infrastructure projects is also partly contributing to this increase. There are also newer processes in place that help boost the chemical and/or mechanical strength of the GCL liner, such that it does not decompose in very high temperatures or upon immersion in chemicals.
One of the primary applications of advanced technologies involves the use of liners and geostraata. Geosynthetic Clay Liners (GCLs) are applied so as to cover capping of waste sites and other areas in order to avoid contamination of the soil and the groundwater by fill material. For instance, Geosynthetic Clay Liners (GCLs) in comparison to compacted clay liners, have shown a recent turn of events that showed that they have a relatively lower hydraulic conductivity. Also, recent amendments enhance the performance and efficiency of g cls application. Besides, it should be mentioned that, with more and more GCLs being used in the mining industry in order to prevent mining residue from spilling over and skins of water owing to them being more in other products, it acclimatizes well with the salt.
Promotion of the utilization of GCL liners is further enhanced by the focus on decreasing the costs of construction and installation of GCL liners. Among other things, municipalities and other sectors have taken an initiative to promote green practices. Therefore, the installations of such liners have remained ever-increasing, for it has become an essential component in many modern containment facilities.
Components of GCLs
Geosynthetic Clay Liners (GCLs) are construction composites that are made of three key elements:
- Geotextiles
Within the context of GCLs, the employment of geotextiles usually refers to the incorporation of woven and non-woven types of material. The incorporation of woven geotextile adds further support to the membrane when it is used or installed. For instance, the level of enhancement in the configuration of the membrane may be defined by examples such as tensile strength, where good quality geotextiles can measure 10 kN/m enhancing GCLs to resist significant stresses in operation. - Bentonite Clay Layer
The main blocking function in GCLs is usually performed by the bentonite clay, including its sodium salt. Bentonite is recognized to efficiently act as a low-level opposition against any liquids due to its high swelling or auto-sealing properties when they come into contact with water. With a tactical modification, bentonite offers a hydraulic conductivity that prevents fluid flow or permeability to be as low as 5 × 10⁻¹² m/s. Currently, granule sizes and layering methods have been refined to enhance the distribution and efficiency of bentonite. - Encapsulation Layers or Adhesion Systems
To ensure the binding of the bentonite clay, stitching, needle-punch, and adhesive bonding methods are used for GCLs. However, needle-punched GCLs have found vast areas of application due to the extreme parameters of the shear strength exhibited. Injection systems are known to be able to endure shear stress of 50 kPa despite the presence of steep slopes or heavy loads.
Sophisticated GCLS often contain polymer buildup or impermeable sheets that increase its effectiveness, especially in an application that involves harsh chemicals or high saltwater conditions. The described elements, taken together with attention to detail in the design phase prevents GCL material from losing its central position as a covering material within the framework of closed-treatments for various projects such as the removal of waste, open-pit mining, river and channel works.

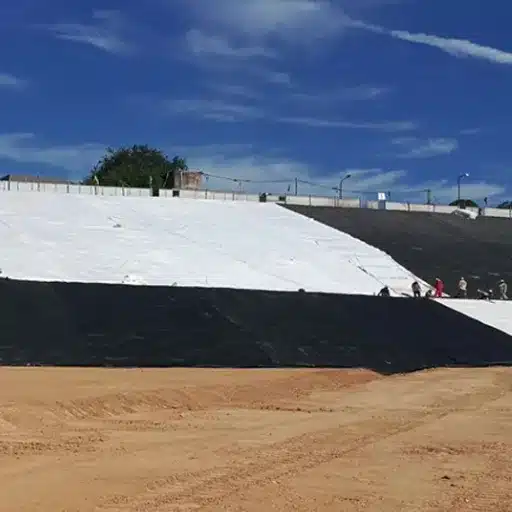

Comparison with Traditional Compacted Clay Liners
Advantages of GCLs over Compacted Clay Liners
In containment applications, Geosynthetic Clay Liners (GCLs) offer various advantages over Compacted Clay Liners (CCLs). They have for instance, far lower hydraulic conductivity as compared to CCLs. GCLs usually have hydraulic conductivities of about 5 x 10^-12 m/s, which was significantly greater than that of CCLs, ranging from 1 x 10^-7 to 1 x 10^-9 m/s, respectively. In other words, these systems are far better at containing fluids and gases than their counterparts.
Additionally, GCLs can afford to be thinner than CCLs at less than 10 mm as opposed to the 0.6-1 meter thick compacted clay liner layers that need to be built. This reduction in thickness is also advantageous because of the space-saving capacity, as more refuse can be disposed of in a given volume. For example, assuming that a 1-meter-thick CCL is replaced by a thin GCL liner, the total available volume of the landfill of operable design can rise by about 15%.
The time and cost for installation processes that would employ GCLs is even less, considering that all components of the GCL are manufactured onsite, thus greatly reducing the labor that would be involved in compacting clay layers, which is also costly. To illustrate, the Geosynthetic Institute in its field survey states that installation of a GCL may be completed in only a third of the time compared to be addressed when constructing a CCL of similar dimensions.
Besides these adversities, the GCL application is still effective since, unlike the compacted clay liners, GCLs can go through numerous freeze-thaw cycles and even long periods of looking at open desiccation without losing effectiveness. Even in the harshest or most aggravating circumstances, the use of GCL liners is favourable, and this is because the swelling of the bentonite heart after it gets hydrated reveals any defects or holes present.
These advantages, therefore, make the use of Geosynthetic Clay Liners in place of the already present Compacted Clay Liners highly efficient in a majority of processes that require them.
Performance Metrics: GCLs vs. CCLs
While weighing the effectiveness of Geosynthetic Clay Liners (GCLs) against that of Compacted Clay Liners (CCLs), the performance metrics correspond to the variances in effectiveness, deployment, as well as the long-term integrity of the two materials. The following benefits of GCLs over CCLs emerge from these studies:
- Hydraulic Conductivity: GCLs deal with low hydraulic conductivity that comes as 5 x 10^-9 cm/s, as opposed to CCLs capable of about 1 x 10^-9 – 1 x 10^-7 cm/s. GCLs serve a better duty when it comes to liquid movement limitation.
- Thickness and Space Efficiency: Generally, GCLs are quite thin, actually, about 6-10mm in thickness, which is far from the 300-900mm thickness of CCLs. This attribute tends to endorse better outdoor construction methods and also minimizes resource wastage.
- Installation Time and Costs: Installations of GCL’s are faster compared to CCL’s, and there is no much labor needed. Therefore, GCL being interlocking in nature reduces the installation time in some situations of up to 50% and thus reduces the labor charge.
- Sealing Capabilities: The bentonite-based barrier uses GCLs, which expand when in contact with water (up to 10-15 times), automatically blocking the damage and creating self-repair for punctures on the impermeable layer. This is different from the CCLs, where the materials require significant maintenance and repairs when in a state that has gone bad.
- Temperature Sensitivity: Research indicates that CCLs tend to crack due to dehydration when kept at high temperatures exceeding a specific limit, while gcls exhibit high integrity even under extreme thermal shocks that occur in desiccant conditions.
- Carbon Footprint: Concerning sustainability and performance on the market, the production and delivery of geosynthetic clay liners have been identified as the more environmentally sensible option over efforts to source and compact large volumes of clay for conventional clay liners, such as compacted clay liners.
Most applications in a geoengineering environment indicate better performance of GCLs in industrial and commercial establishments, including but not limited to landfills, containment facilities, sewage plants and water transportation facilities. Due to their high efficacy, limited pollution potential, and durability, they are the most popular products compared to traditional marketed CCLs in recent years.
Cost-Effectiveness Analysis
Geosynthetic Clay Liners (GCLs) are often found strategically cheaper compared to Compacted Clay Liners (CCLs) because their design makes them cheaper both in raw materials and/or in their easy installation. GCLs give rise to fewer volumes of waste and require fewer men since they weigh less. On the contrary, CCLs tend to be cumbersome and thus require thicker deposits. As GCLs have lower volumes, the number of materials needed at a given point in space is also less. This simplification lessens both the fuel consumption and the cost of transportation.
Take, for example, a report that the application of GCL for extended containment structures costs 50% of the installation of CCL for this particular purpose. In addition to this, the installation of the GCL liner is express and is often viewed in terms of days and not weeks, which allows saving money of the project for hiring the labor force.
Mechanically speaking, Geosynthetic Clay Liners (GCLs) offer an unparalleled level of protection in terms of prevention of leachate ingress and unparalleled restoration advantages over CCLs. Thus, the costs are reduced obsolescence-wise. As in the respective study of geosynthetic institute, when comparing the hydraulic conductivity, it is observed that GCLs lie in the range 10 – 100 when compared to CCLs, which is a far better situation. This means that the chances of leakage are reduced, and so will be the expenses of barrier restoration to an almost negligible amount. Moreover, partiality towards lighter-weight equipment savings in regard to transport as opposed to more traditional solutions, can be expected as the containers can bear lighter equipment, which may limit the need to erect or repair a single piece of machinery.
Moreover, the shield of as opposed to other cost savings, where the environment and technology around such GCLs cannot be overemphasised. The emissions caused by the usage of GCL are relatively low when compared to CCL, which involves an extensive amount of clay that is extracted and carried. Assuming the utilization of GCL in every case, such a task will result in 60% less amount of co2 than alternative containment means. Therefore, because of these efficiencies, it is possible to create engineered structures that satisfy such environmental goals. Such GCL, with optimally integrated structures, is the most economical liner used today, as well as Geosynthetic Clay Liners. ouncy is currently an acceptable solution.

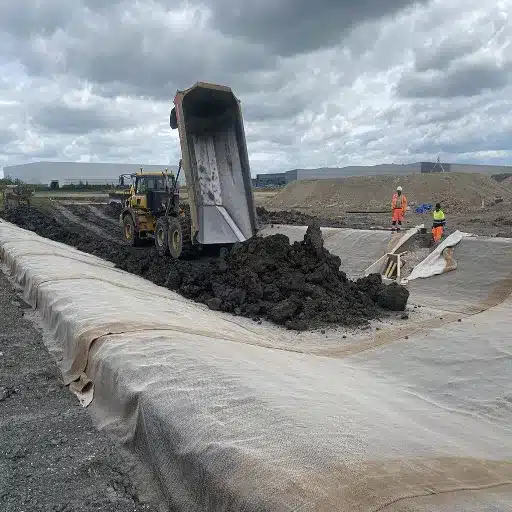

Installation Best Practices for GCLs
Preparation of the Subgrade
When considering how to increase the life span of a Geosynthetic Clay Liner (GCL), subgrade preparation has to be considered. The base must be backed up cautiously so that there are no protruding sharp objects like stones, tree roots or other aggressive combustible materials that can damage the GCL liner. As stated in the standards of workmanship, transit spacing specified shall be ± 0.2 feet where the surface of the subgrade will be fine.
As a matter of fact, it can be stated that surface irregularities on the subgrade result in a concentration of stresses in the GCL liner, which, within the service life is reduced by about 15-20%. Furthermore, the soil underneath should be capable of handling the weights induced on it without excessive sinking, as this will cause the liner system to be inefficient. Even better results are expected with underlying grounds that are close to 95% of the Standard Proctor Density (ASTM D698).
Another crucial concern is the water content within the base layer. Certain conditions can make the Geosynthetic Clay Liners ineffective, such as a very dry or wet subgrade. Engineering guidelines always prescribe that for the enhancement of compaction, the moisture level should be 2 percent water short of the low value. Additionally, the design of the subgrade, which usually does not include an inclination greater than 3:1, helps mitigate such factors as erosion or standing water, specifically the use of water retention structures that aid in drainage and stabilization.
In conclusion, the approval of the subgrade as a base for the installation of the GCL requires that any problems be appropriately checked and fixed in advance by competent personnel. Thereby, the deviation from such grades decreases, enabling the design dimensions to be attained, and the whole operation benefits from the equipment that employs advanced GPS in its functioning.
Techniques for Proper Installation
Setting up Geosynthetic Clay Liners (GCLs) requires sticking to certain installation practices for the duration of the structure’s life. The following tips and factors are borrowed from the contemporary approaches in the field:
- Subgrade Preparation
Any stones, debris, rocks, comeseries of sharp or even surfaces on which poor GCLs can be an issue. The level is very important as slope limits – both horizontal and vertical, depending on the shape of the embankment, are to be imposed. Sometimes, the allowable tolerance is ± 0.1 ft for the flatness of the bank slope. This suggests what some researchers have established in field tests that uneven slopes, a wrinkled, and installed GCL liner can reduce by about 20% its function. - Storage And Installation
Rolls of GCL require dry storage and covers and should not be placed in the storage area until they are needed for installation. Lifting or unrolling of the GCL must use devices that do not cause tearing or elongation. It was found, in recent years, that a significant non-compliance in the handling of GCL’s is the cause of 10–15% of the defects noticed when inspection is done. - Covering and Joining
Sheets of Geosynthetic Clay Liners are overlapped, as stated in the plan, for the GCL liner not to lose its function (usually 6-12 inches). However, due care must be taken that the seams are covered and aligned properly, and for this, bentonite powder or granular bentonite can be added to punctuate the seam. An article suggests that the rate of seepage is reduced up to 30% by using reinforced seams. - Hydration and Protection
Once the GCL is applied, it needs to be kept moist for a few days in order for it to swell and seal properly, which is in accordance with the instructions provided by the manufacturer. It has been found that applying the GCL in very arid regions results in a performance increase of 25% upon hydration. In addition, once installed, the GCL finer should be covered with protective soil or a geomembrane as soon as possible, protecting it from UV radiation as well as mechanical impacts. - Quality Control and Inspection
Planned inspections on sites are an assurance standard operating to ensure installations meet the expected quality standards. When it comes to post-installation surveys, it is advisable to use advanced technology, such as the use of drones or infrared cameras, in detecting any irregularities or damages, rather than relying on old-fashioned ways. According to statistics and industry records, only about 5% failures in performance installation occur in projects that allow higher rates of quality control.
These practices, blended with the appropriate materials and personnel, will make sure that the Geosynthetic Clay Liners, or any other GCL liner, work perfectly and perform as per its sealed designs.
Quality Control Measures
Installation of Geosynthetic Clay Liners (GCLs) requires comprehensive and very strict control as well as corrections in the process of construction, which is understandable as they are the most critical operations. For instance, recent studies have demonstrated that the current performance of identifying defects can be enhanced by approximately 90 % through the use of nondestructive, contactless, advanced methods such as the detection of temperature fields or the location of pinholes or electric maps. Moreover, as the research under discussion reveals, the application of the GCL liner makes it possible to cover all the working stages, hence reducing the wastage of material by 15 %.
Research across sectors reveals how helpful pre-installation inspection can be to an organization’s bottom line since over a dozen issues are resolved before the installation stage, hence cutting down on maintenance costs after installation. Likewise, with systems of automatic diagnosis of the state of affairs, one can determine the condition of the Geosynthetic Clay Liners (GCL), and remediation measures for defects in a minimum period of time. The thesis elucidates that both classical methods and technological progress are necessary in designing containment systems that are effective and safe.

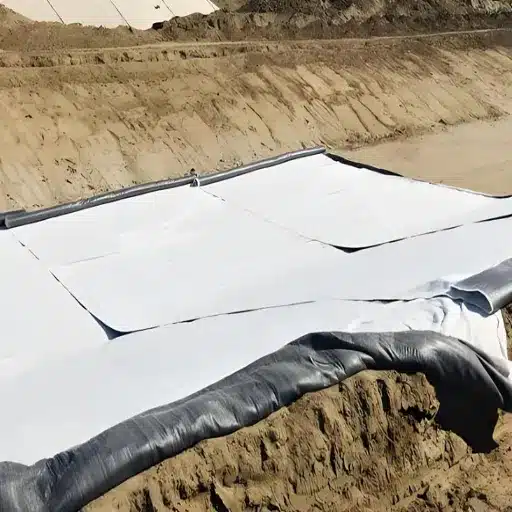

Common Pitfalls to Avoid
Installation Errors and Their Consequences
Reduction in the performance of Geosynthetic Clay Liners (GCL) with the functions of barriers is one of the possible conditions that arises due to inadequate/faulty construction or installation. This is, for instance, observed in the absence of proper base treatment, when overlapping of panels is not conducted effectively, and the zippers are not well bonded. Research establishes that leakage may increase more than tenfold if the overlap falls to less than 6 inches, as recommended against well seam overlaps.
Another contentious situation that has also been mentioned as a representative case is that whereby the surface is not cleared from any sharp objects like Struts or other debris, which may be accidentally contacted with during installation. All the latter is likely to be knobby on the GCL liner and cause perforations. Previous studies revealed that puncture damage would cause 20-30% inefficiency of the protective system to leakages, depending on the extent of the damage.
By keeping these particulars in mind, it is also important to assess the level of moisture while installing. The practice of using bentonite in various applications, especially when Geosynthetic Clay Liners are used, often creates problems. For example, when the geotextiles have to be applied very dry or very wet then there could be issues with the performance due to the fact that the GCL should be swollen and closed with water with the aid of membranes and bonding agents. This significant dependency on moisture has resulted in heightened installation of weather control measures, including rain stopping.
As a manner of avoiding such errors, there are acceptable business practices, including the appropriateness of curing, vocational skills for workers, site coordination, and adherence to the producer’s instructions. Use of advanced Q. C. equipment, such as surface scanners and IR Thermographic inspections have also been introduced in the process to retain high quality during installation and to ensure any flaws can be located.
Maintenance Challenges and Solutions
Maintaining and operating state-of-the-art buildings, along with the technology used for construction, is an intricate issue because many things related to the same determine how long we can rely on the structure. For instance, long years of existence due to extreme weather, one of the causes of this is the weather-related impacts on most of the building materials in a destructive way, such as, excessive heat, excessive cold, aggressive materials, or other factors in the vicinity. Studies done on construction materials show that, in general, it is advisable to say that UV light affects the mass of materials used in construction to about 40%. Having control of the construction materials used thus becomes crucial. Other causes of difficulties in repair can arise because of the accumulation of water, since the whole or part of a structure is poorly done with its conservation measures or has developed a fault after external inspections.
Nonetheless, resorting to innovation in order to assist solid changes in traditional trends and modes of industrial maintenance will be highly appreciated. In particular, every detail concerning thorough periodical assessments of devices can be done faster and without any rush using technological devices as advanced as drones that use infrared to capture images. In this situation, a very good example would be the utilization of infrared thermography for the detection of moisture and temperature distribution anomalies indicative of either a structural defect or neglect of any thermal insulation.
There are also particular patterns in the calculation of damage-causing breakdown that is exclusive for damage predicting maintenance, which moves very practically into the realm of practical glovebox in contrast to previously mentioned PM, which measures degradation rates and compares them to set benchmarks to predict machine life. If you look at the prediction for 2025, it appears that most customers are focused solely on where PM Maintenance strategies are ideally placed. In addition, there is not just the cost that is avoided where the technology is used in the replacement of components, but the increased period for which the equipment functions, which takes away the effect of the slow restoration, and later in the future, the failure rate of such equipment, also the success rate of such equipment is also enhanced.
Complementary application of technologies is yet another way to address the aging threat posed. Take, for instance, the routine maintenance tasks as well as the application of protective coatings, such as the elastomeric coating. These preparations of any design and material are made to withstand the climatic effects; thus, the adjustment would be difficult but is possible; the efficiency of any such system increases with the latest in technology. Studies conducted by the U. S. Department of Energy showed failure in the energy region to be as high as 50% of the total residential loss. In addition, the root cause of the problem cannot be identified due to the variance in the proper understanding of the technician process, as one is examining the injections or unresolved symptoms, which occur on a particular defect in the insulating material that is unprotected.
Environmental Considerations
It is not surprising that, being such a major resource, the maintenance’s eco-friendliness becomes more important to consider in light of the latest economic trends towards more sustainability. It is estimated that buildings account for almost 39 per cent of emissions worldwide, according to the Environmental Protection Agency – evidence of the need for maintaining energy-saving systems. Greener technologies like low-VOC (volatile organic compound) paints not only avoid damaging the environment but also improve the overall working conditions. Besides, greenhouse emissions can also be cut down during the maintenance phase, where renewable powered equipments such as wind turbines is utilized.
The global wave of digital revolution has captured even the clever sensors and preventive maintenance, to name a few, but it is not limited to them, or even the self-healing structures and other types of equipment, thanks to the invention of the concept known as smart building. Market and Markets has predicted that with the improvements in the supply chain and the efficient usage of resources and planned maintenance actions that avoid unscheduled and premature maintenance, these expectations are not baseless. The global market for maintenance as a result of failure predictions is 23.5 billion dollars till the year 2026. Besides, the maintenance models are of use in the maintenance-in-operation of the equipment. The movement towards maintenance strategies that improve the maintenance management efficiency and environmental protection requirements combined.
Reference Sources
-
State-of-the-art review of geosynthetic clay liners
This review discusses the role of GCLs in preventing leachate contamination in landfill systems and highlights their hydraulic performance.
Source: MDPI -
The need to consider the service life of all components of a modern MSW landfill liner system
This study evaluates the long-term performance of GCLs in modern municipal solid waste (MSW) landfill systems, including their resistance to internal erosion.
Source: ScienceDirect -
Comprehensive review of geosynthetic clay liner and compacted clay liner
This research compares GCLs with compacted clay liners, focusing on their application in waste disposal landfills and their effectiveness in enhancing liner systems.
Source: IOP Science
Frequently Asked Questions (FAQs)
How do Geosynthetic Clay Liners (GCL) enhance landfill liner systems?
Geosynthetic Clay Liners (GCL), which are combinations of bentonite clay and other types of geotextiles or geomembranes, are used to prevent waste from draining out into the environment through landfills. These landfill liner styles that incorporate geosynthetic clay liners minimize the risk of contaminants seeping into the soil or groundwater by offering extremely low levels of permeability. In addition, GCLs are easy to install and can be installed with very minimal earth covering compared with conventional application of compact bed clay liners, and hence are very efficient and cheap alternatives.
What are the key advantages of using GCL in environmental preservation?
Geosynthetic Clay Liners (GCLs) are highly effective in ensuring the environment is adequately protected from contamination. This is because they offer a constant hydraulic performance, thus overlaying and protecting the environment, such as groundwater. In addition, Bioclays are useful in reducing construction waste since they are very easy to install and withstand the elements for a long period of time. Because they consume less primary resources, unlike these traditional lining enterprises, it helps promote sustainable growth.
What ensures Geosynthetic Clay Liners work efficiently in landfills?
In particular, the just-in-time nature of the GCL liner during installation and wastage is highly desired, for it eliminates duplication, diminishes potential conflicts for the same labor and equipment, and cuts expenses. These items are prefabricated in a way and are also fixed in less time and with minimal labor. Moreover, in a case where there is one unit of the GCL liner, it becomes easier to manage its performance in different application contexts.
What is the significance of GCL-based landfill systems?
Geosynthetic Clay Liners are a crucial aspect in the use of a conventional landfill type. Technologies and practices have changed over time, and now sensors and monitoring tools can be used to detect any deformation or damage to the GCL liner. This is important as it provides the chance to engage almost instantly in case there is a risk of failing due to the linear system. Not only does it reduce redundancies, but it also enhances resource use efficiency and causes some cost savings as well.
How does the use of Geosynthetic Clay Liners economically affect the lining of landfills?
There is a possibility of using GCL being confirmed as economical for most of the situations. If used properly, the GCL would help in reducing the time of its construction as well as cut down most of the labor and material applications in comparison to the conventional compacted clay liners. In other words, GCL liners are long-lasting, and they do not require frequent repairing or replacement, which means that the cost goes down.
Is it feasible to manufacture GCL liners for particular landfill projects?
Yes, it is possible in essence to develop different types of Geosynthetic Clay Liners for variants of landfills in particular, climate-regulated and non-regulated locations. Different types of GCL are offered in the market by different manufacturers and these include modified liners that are with liners that have polymer additives added on for extreme applications that require resistance to excessive chemicals or elevated hydraulic head application conditions. It is enabled for solving the most difficult tasks of the task at hand with the maximum possible engineering and construction flexibility structures.
