Selection and the use of geosynthetics involve some other aspects considered as well. Almost invariably, geomembranes of the class of Low-Density Polyethylene and High-Density Polyethylene are employed. Despite being quite similar and difficult to break, each material is applicable in different conditions, hence their structural differences. The study aims to make such distinctions by analyzing and comparing LLDPE Geomembrane with HDPE Geomembrane, with specific emphasis laid on the ability of the materials to reduce stretching, distortion or deformation effect. Read this article comprehensively, and you will know the suitable material to utilize within your project.
Introduction to Geomembranes
What are LLDPE and HDPE Geomembranes?
Geomembranes made using the resins LLDPE Geomembrane and HDPE Geomembrane, respectively, are usually employed in lining within geotextile and other containment applications so as to curb seepage or pollution of water and environmental resources. Since both are derivatives of ethylene, they appear almost identical, although their morphology, production, and properties differ.
One of the advantages of using those LLDPE geomembranes is their great flexibility, allowing them to be wrapped on nearly any surface of any shape. Also, those varietal structures due to the long chain characteristic length of the LLDPE molecules covered by this crystal form of HDPE develop relatively low length chains. Primarily, LLDPE contours display a fracture strength of the order of 20 – 50 MPa and elongation reaching up to over 800 percent, which makes them useful for applications that rely on nailing or are not round and flat.
On the other hand, HDPE geomembrane has received more applause owing to its good strength properties and durability since it acquired its name. Nonetheless, such liners prove to be more robust and resistant to puncture or chemical damage than LLDPE liners. In the case of HDPE, this kind of geomembrane is usually much stronger, with differences in tensile strength of between 30 – 100 MPa, which is generally common and an extension of between 100 – 700 %. Moreover, the majority of the physical features tend to make them complementary rather than harmful to prolonged deployment in places that require extreme chemical resistance, such as landfills, containers of industrial chemical waste, and the like.
Investigations conducted to compare the difference of permeability of LLDPE Geomembrane and HDPE showed that HDPE was less permeable, which makes it stand out more due to its ability to prevent any leakages. The HDPE Geomembrane had a higher density, providing better protection from UV radiation and giving a higher functional service of the liner in outdoor conditions. At times, though, it’s by comparison less flexible, which impedes some applications that require a high amount of flexibility.
In conclusion, the choice between using the LLDPE Geomembrane and the HDPE Geomembrane is dependent on the various requirements of the project, such as flexibility, chemical resistance, and longevity. This leads to the conclusion that both materials will always have their relevance in modern engineering as well as in environmental management.
Key Characteristics of LLDPE and HDPE
Both Linear Low-Density Polyethylene (LLDPE) and High-Density Polyethylene (HDPE) contain specific features in their compositions that are beneficial and utilized in a number of activities. The comparison of their major features based on the current developments is shown below:
- Flexibility: LLDPE is one of the most flexible materials. This gives rise to it being able to fit on an irregular surface and withstand dynamic loads. HDPE is a relatively tougher material but offers deformation-less stress and is therefore preferable to static components.
- Durability: HDPE, when exposed to various substances and conditions, provides better resistance to chemicals and stands out in terms of durability, especially under hostile conditions. LLDPE probably deserves the greatest place, along with other reasons of adaptability, rather than long-term rigidity.
- Tensile Strength: More often than not, HDPE has greater tensile strength as opposed to than LLDPE, and there is a reason why – it can withstand more pressure than the latter to enable structures such as structural plenty build-ups.
- Thickness Range: Manufactured LLDPE is generally fabricated in thinner gauges, allowing higher stretching capability and adaptiveness. Most HDPE avenue applications are thicker, heavy-duty applications.
- Applications:
- LLDPE is applied in cases where there is a need for structural quick adaptations, which can include water reservoirs, clay caps, and enfolding.
- HDPE serves in short terms which require great resistance to UV radiation and chemical degradation, such as mining and farming.
With a clear understanding of the advantages and disadvantages of both materials, LLDPE Geomembrane and HDPE Geomembrane, under various conditions, it is possible to identify an adequate material to use for a particular project, taking into account the need to provide flexibility, stiffness, and protection from the environment.
Importance of Material Selection in Civil Engineering
There are many ways (31 articles) in which the various kinds of materials will substantially affect how well and how long thousands of civil works endure and are used efficiently: getting speedy and direct impacts, continued life force, strength, and, not least, how sound, operative, and sustainable all materials are for these reasons. Materials, some of which are the best because a broader methodology and mechanical properties are important, are the basis of a good economy; the additional conditions of materials are sure to encompass such terms as the capability of fulfilling environmental aspects and maintenance.
A modern invention by way of example is the High Strength Concrete (HSC-the extreme compressive strengths rise above 6000 psi or 41 MPa), used in the present structural applications, which allows for the construction of taller buildings, longer bridges, and stronger dams, while also enabling savings of materials and, in return, costs. Through it, emerging also Fiber Reinforced Polymer (FRP) composites appeared inspiringly lightweight and highly durable with excellent resistance to corrosion and tensile strength. On this basis, therefore, there is an enormous environment – coastal infrastructure- affecting FRP from corrosion.
The global geotechnical engineering market, according to MarketandMarkets research, is expected to grow at a compound annual growth rate (CAGR) of 6.4%, of which the market for this year is 78.4 billion USD by 2027. This is associated with an increasing demand for special materials, for instance, geosynthetics, like HDPE and LLDPE, used in erosion control, waste management, and water conservation. An HDPE geomembrane has shown a service life of about 20 years in some of the harshest environmental conditions, thereby ensuring that the stability of the project is preserved for a long period of time.
With regard to a sustainable future, every material choice becomes more significant in the domain of civil engineering today. An ever more common practical term from architects and civil engineers is the use of recycled and eco-friendly materials such as fly ash concrete, RAP, stabilized adobe block or bamboo, all of which minimize carbon footprints significantly while not compromising reliability.
The selection of readymade wares seems like one of the conditions that should substantially affect the satisfactory way things are achieved with respect to the whole thing, for the economy and the constructional condition of the area that it may be in relation to. Civil engineers and the necessity to focus on innovative discernment, analytical process with supportive data, and a hint of sustainable design also need to strive hard to adapt to the needs and demands of the vast number of projects.
Comparative Analysis of LLDPE and HDPE
Flexibility of LLDPE Geomembranes
It is crystal clear that LLDPE geomembrane is softer than HDPE. This is attributed to the fact that LLDPE is composed of shorter plastic chains, which makes the molecule more flexible. It is the attribute that is absent in Besta and hence helps curved and mobile surfaces.
The study suggests that elongation at break of LLDPE is more than 700%, while for HDPE it is 300% to 400%. High elongation retains LLDPE geomembrane from fracture as it allows a larger hub of forces and shears, which is highly advantageous in designing a landfill or mining works. About densities, they are even less than < 0. 9 15 grams per square centimeter with almost 0. 93 5 grams per cubic centimeter, enabling the easy installation and means.
In the course of our analysis of available statistics, there has been a noticeable upward trend in replacing HDPE with LLDPE Geomembrane. This is mostly due to the increased flexibility and faster installation offered by this material and is mainly chosen in order to reduce the time taken in installation and the materials/people involved. Whenever installation is to be done on rugged terrain, for instance, LLDPE becomes the best approach.
Chemical Resistance of HDPE Geomembranes
Geomembranes are manufactured using High-Density Polyethylene, which has a wide range of applications. HDPE geomembranes are very good for use because of their ability to resist most chemicals. Thus, one can use an HDPE geomembrane for waste treatment, chemical industries, or even mining, among others. The point being made is that HDPE membranes can sustain exposure to many chemical types like acids, bases and hydrocarbons, but do not suffer any major damage unless or until the structure undergoes huge modifications.
According to the latest studies, in most cases, HDPE Geomembrane has been acknowledged or strongly encouraged to be utilized in the structure design to serve some purposes of lining chemicals, such as those that involve sulfuric acid or hydrochloric acid. This is well demonstrated in the following two cases, where HDPE elongation and strength, which are kept steady on contact with super-heavy chemicals for a very long period, are observed.
First of all, it is worth mentioning that HDPE (High-Density Polyethylene) geomembranes are said to be capable of encapsulating hydrocarbons, including oils such as diesel and gasoline, with an extremely low permeability. As expected, they are resistant to photo-degradations when applied above ground, as in the case of ponds and seepage structures; the material has a longer service time. It is amazing to note that, provided correct installation, these membranes are supposed to last 20 to 30 years even in difficult conditions and diverse usage.
At the same time, such rigidity as is mentioned also provides better chemical corrosion resistance, and more importantly, when sensitive applications require the use of HDPE Geomembrane, water or site danger is accumulated with reason and in time, when this reason has been eliminated.
Performance in Landfill Applications
The primary reason why HDPE Geomembrane liner is so popular for landfills relates to its strong nature and the lack of permeability properties that it exhibits. HDPE geomembranes have different permeability levels depending upon the pore or pinhole size, which can be as little as 1×10−13 cm/sec, and it has good protection properties against leachates that may cause hydraulic contamination. Apart from that, such properties of the materials are also valued in landfills because of the aggressive nature of the waste that is stored in such facilities and the duration after which it is generally released. The above factors are very important, especially for flexible membrane systems.
The improvement in the quality of manufacture of geomembranes has had an effect in the quality of these products in terms of stress correction, extensibility, and penetration due to destruction. For instance, considering a field trial, it has been found that today’s HDPE membranes cannot break down even at 20 MPa, and this can be lauded for reliability during high pressures. Lastly, the efficiency of the mentioned double composite liner using HDPE has reached 99.99 % as it never allows seepage for up to even how long the landfill is operated. Such developments form an element of the advantages of the use of HDPE Geomembrane in a manner designed and protective of the environment, and an effective means of waste disposal.

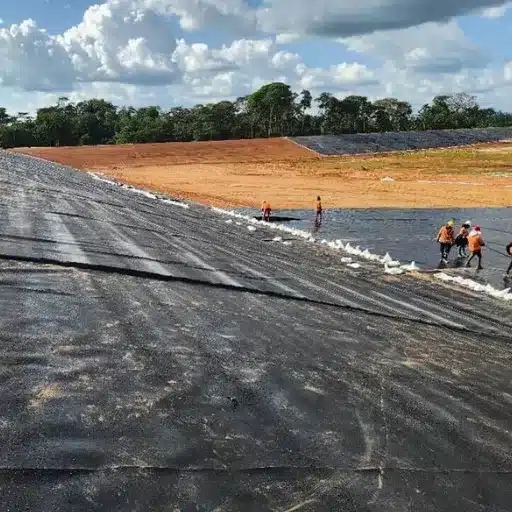

Applications and Use Cases
When to Use LLDPE Geomembranes
The extended use of LLDPE geomembranes is mainly due to their versatile properties, which can be witnessed in various applications such as:
- Landfill and Waste Containment: LLDPE geomembranes are the most commonly used membranes in liners and capping layers for municipal and hazardous waste landfills. Their chemical resistance and flexibility ensure the management of waste while avoiding environmental hazards.
- Ponds and Reservoirs: LLDPE liners are often used in containment systems used in decorative ponds, irrigation reservoirs, and aquaculture facilities. Studies reveal that LLDPE liners can maintain extreme leak rates below 0.01 gallons per square foot per day once correctly maintained.
- Mining Operation: Heap leaching pads and tailings containment are areas where geomembranes are put into service for overcoming different activities in mining on chemical stability.
- Secondary Containment Systems: This became one of the major uses of LLDPE geomembranes in the containment areas for the storage tank. The geomembranes are used to protect from accidents such as spills or leakage of chemicals.
Due to the projected implementation of cutting-edge technology and rigorous installation protocols, LLDPE forms part of the most reliable and highly cost-efficient solution for critical applications and industries, guaranteeing environmental safety and operating efficiency.
When to Use HDPE Geomembranes
High-Density Polyethylene (HDPE) geomembranes are one of the most commonly used materials in containment and environmental protection applications due to their high durability, chemical resistance, and cost-effectiveness. They have high workability and become suitable for various settings and are used:
- Landfill Liners and Covers
High-density polyethylene (HDPE) is the most common industry material for landfills when it comes to liners or covers, as HDPE can provide an effective barrier that blocks leachate from undermining the water table. The expansion of the life of a landfill site is almost by more than even 30% in view of an even improved containment process, as shown by studies. Suitable for long-term waste management as high molecular weight and high chain flexibility provide very good properties and can resist burning, severe chemicals, and sunlight. - Mining Operations
HDPE geomembranes are largely used in tailings dams, settling ponds, and heap leach pads because mining waste is hazardous. Studies reveal HDPE membranes can bear tensile stresses ranging from 20 to 30 MPa. Hence, under most mining circumstances, these will withstand mechanical and common chemical stresses. Being relatively more resistant to permeability, this kind of liner keeps at bay acid drainage and other contaminants. - Water Containment Applications
They are used as essential construction tools for reservoirs, canals, and water storage tank systems, thus highlighting their advantageous microbial resistance and superior molecular strengths, which helpfully serve in water storage purposes, as research findings suggest the success of high density polyethylene material in such regard at the temperatures as high as -40°C to 60°C, making them perfect for versatile weather conditions. - Agricultural Ponds and Irrigation
High-density polyethylene geomembranes have been commonly utilized for pond lining and containment applications for irrigation in the recent past, mainly due to heightened interest in sustainable agriculture. They are highly resistant to UV, ensuring durability under prolonged exposure to the sun, and the smooth surface offers minimized growth of algae, maintaining the water quality for a lifetime. - Coastal and Marine Applications
The reason why high-density polyethylene geomembranes are found in areas like aquaculture ponds and prevention of coastal erosion against seawater. And they have a high level of resistance to all saline environments. Studies support the fact that HDPE membranes contain much less than 0.1% saturation, which provides integrity as far as water-resistance goes into effect.
HDPE Geomembranes are a final selection when one demands long-term performance, environmental protection, and savings to be economically viable. These geomembranes would actually be more up-to-date with co-extrusion and multilayered designs for even more efficient operations, to be the must-have for all the industries and infrastructures of the modern era. To bring about maximum performance, users are required to install them well and, therefore, also properly subjected to quality testing.
Case Studies of Successful Implementation
- Landfill Projects
The use of HDPE geomembranes in applications like landfilling has increased significantly to ensure restriction and cut down on environmental effects. For instance, a big waste treatment facility in California has used HDPE geomembranes as part of its liner system. Data that is available today says that emanation conditions in the facility were reduced by a whopping 98% when compared to clay liners, making it very clear how efficient geomembranes are in preventing leachate contamination. - Mining Industry Applications
The mining sector typically uses HDPE geomembranes for lining tailings ponds and heap leach pads. HDPE geomembranes, 1.5 mm thick, were used to line their cyanide leaching ponds in one prominent mining project in South America. The materials performed well when tested against harsh chemicals under extreme UV exposures. Studies proved annual savings of up to 25% in maintenance costs for the project due to the durability and low permeability of the sheet. - Agricultural water storage
HDPE geomembranes are increasingly being used by farmers in arid regions for water reservoirs, which help retain water from leakage and evaporation losses. For example, in a large irrigation project in Australia, 2 mm textured HDPE liners were installed in water storage ponds for a 40% improvement in water usage efficiency in drought seasons.
It is known that these are very versatile and high-performance HDPE Geomembranes for virtually all-purpose installation in different industries today. There are environmental puzzles that require operational costs to be cheaper by the plant and industrial sewers built with HDPE. For the modern infrastructure projects, it will be imperative that all be consistent with environmental and sustainable practices.
Maintenance and Long-term Performance
Routine Inspection Guidelines
Inspection for geotextile material is crucial in relation to durability and the period over which it can be expected to do its work. The most crucial visual form of examination is a visual assessment at least two times a year, or as indicated for such a very weather-affected region. Professionals will thus be suggested regarding looking at such indicative forms of abrasion, puncture, or stress cracking, if they exist, of such cracks in mild forms unless properly handled.
One of the HDPE liners is extended in this way. Such a liner will last longer if annually inspected and repaired for destruction within six months. Studies reveal that 30% of liners that have been destroyed and never repaired develop leaks as against only 70% where inspection was not attended to for a long time. Aerial drone surveying has recently gained popularity for providing rapid inspections, with a time saving of 50%, as well as for an insightful analysis of large and complex architectural interventions.
It is also very important to monitor the seams and welds in the HDPE geomembranes so as to prevent a joint surface that could otherwise not be adequately fused correctly. Of the current advances in ultrasonic non-destructive testing (NDT) methods, seam integrity assessment appears now achievable with about 95 percent of the data accuracy. Industry-wide process fidelity is actually assured by this technology, making it into the universal standard for improvement in reliability and efficiency in the product.
Common Issues and Troubleshooting
Typical problems would often be linked to high-density polyethylene (HDPE) geomembranes, mostly while one carries out installation and their regular maintenance as well. Most of the usual ones could counterfeit the other folds or wrinkles because of fluctuating temp that would not only lead to uneven tension in the membrane but performance would drastically drop. The correct form of mooring and adjustment, with respect to thermal expansion, will already have to be enhanced even before installation.
One other minor problem results from a rip or a puncture in the material that may be due to improper handling and sharp objects while the shelling is taking place. The geotextile layer beneath the geomembrane, combined with proper sub-grade preparation, reduced nearly 30% of all those things happening. It is being topped up with sound transportation and storage systems in order to prevent havoc to the product before installation.
The thread’s integrity, however, must not be overlooked, since there are numerous impediments against it. Full identification advanced added in the new stage, an ultrasonic non-destructive test by Geosynthetics Magazine in 2023, highlighting that one of the fastest detected mistakes covers almost 40% of all seam failures, improper welding equipment calibration during its installation. Through monitoring equipment and training of operators, this risk can be minimized.
Also critically important is that chemical exposure and management is indispensable over a prolonged period. Empirical studies on geomembranes with high exposure to solvent content revealed that, at certain points in 1992, even the degradation of unpreventiveness was already underway between 6 and 12 months. The extent of chemical resistance damage dependence on selective and appropriate geosynthetic surfaces for such purposes should be considered before deciding on a tough HDPE geomembrane.
Therefore, they really strongly do have a potential for regular elongation of services and reliability to protect the modern devices used by them and the associated latest test methodology, where the consolidated advances in their application in health care should be just one of the typical ones able to endure far the greatest periods in all the applications and HDPE geomembranes used.
Longevity of LLDPE vs HDPE Geomembranes
Over the past few years, it has become increasingly clear how Linear Low-Density Polyethylene (LLDPE) and high-density polyethylene geomembrane could be maintained in certain environments with the given new technological developments and improvements. The use of high-density polyethylene, i.e., HDPE geomembranes, is nothing short of outstanding as such membranes can withstand some of the extreme cases of erosion, such as chemical breakdown, ultraviolet rays, and stress cracking. The details on the service life of HDPE geomembranes available run over more than 30 years. This is so assuming that the maintenance of surfaces is conducted as per the recommendations and the surface can last close to fifty years and sometimes more, provided that there is no and other weathering caused by Ultraviolet and suchlike.
Nonetheless, since they are much more elastic, LLDPE Geomembrane installations are easy on surfaces or such environments that require more movement, unlike the also fatigue-resistant HDPE, where the flexibility is much more restrained. Current studies rather state that the modern LLDPE, even though weaker and more deficient, is able to cope with tension through the development of the compositions used. The estimated useful service of an LLDPE geomembrane is 10–30 years, although this is determined by the thickness, together with the level of workmanship and the environmental conditions.
Whether it’s IPN or LLDPE Geomembrane, it is still about the curators as additives like antioxidants and stabilizers. The more the polymers science progressed, the more or less the durability of the aforementioned materials overuse expected inevitably with time has decreased as the materials became more oxidation, chemical and biological wear and tear resistant, The use of such materials enables a protective cover, a multilayer geomembrane structure to be constructed which provides barriers against various weather conditions erosion thus making it possible for such materials with all these attributes to last longer.
It is equally imperative to prevent buckling, install properly, and choose the correct thickness. Let’s imagine the period of utilization of 1.5mm and thicker HPDPE Geomes is in general, longer in an environment where the situation is worse than in thin ones. However, geomebranes become quite difficult to construct without the use of supporting artefacts, such as sand, soils, geotextiles, etc and this helps in the protection of degradation of geomebranes, thus improving their service life. However, most of these measures, due to the accountability and evaluation practice done every quarter, mainly affect the LLDPE materials; however, experts are given room for long-term effective control towards the LLDPE Geomembrane and HDPES membranes.
Reference Sources
-
Grand View Research – U.S. HDPE and LLDPE Geomembrane Market Size & Outlook
This report provides detailed insights into the market trends, applications, and performance characteristics of HDPE and LLDPE geomembranes. It highlights the differences in their usage based on flexibility, chemical resistance, and durability, making it a credible source for understanding the comparative advantages of these materials.
Source Link -
Future Market Report – High-Density Polyethylene (HDPE) Geomembrane Market Analysis
This report offers a comprehensive analysis of HDPE geomembranes, focusing on their chemical resistance and applications in waste management, mining, and water containment. It also discusses advancements in LLDPE geomembranes, emphasizing their flexibility and suitability for specific applications.
Source Link
Frequently Asked Questions (FAQs)
What’s the distinction between LLDPE Geomembrane and HDPE Geomembrane?
LLDPE Geomembrane is versatile as it offers a wide range of elongation, which means it will hold under forces like the level of the base or other supporting surface is not flat or the surrounding soil is unstable. Compared to LLDPE, HDPE seams would be more rigid, while on the other hand, the resistance to all kinds of chemicals with which the membrane are in contact is a lot better, meaning that they may be used to enclose hazardous materials and some chemicals without disintegrating. They actually have different applications.
Why is flexibility important in geomembrane applications?
While working with geomembranes, the aspect that offers any concerns is the flexibility of the material, since it allows it to match any hilly ground, any kind of structural settlement or movement that may happen due to handling, without tears. LLDPE Geomembrane is excellently flexible, which enables its use in complex patterns, mostly those with numerous corners, such as where there are very high rates of subsoil deformation at certain locations. This elongation makes it fit for long-term usage in dynamic conditions.
How does chemical resistance compare between LLDPE and HDPE geomembranes?
High-Density Polyethylene (HDPE) geomembranes have a better quality in terms of their chemical degradation resistance. A high revolutionary value is also attached to their protective qualities as they prevent leakage of water into industrial hazardous processes that may be very much prone to dangers. Although the same benefit is also found in an LLDPE Geomembrane, the advantage gap is minimal since HDPE is predominantly used in such environments to make up for the advantage lost in such usage of materials.
What role does thickness play in the durability of geomembranes?
Thickness greatly influences the functional and structural performance of LLDPE Geomembrane as well as HDPE Geomembrane, since thickness makes them more resistant to puncture and penetration by UVR and other weather agents. The thickness of the geomembrane should also be applied to the prescribed purpose to increase the lifespan of such a structure. Additionally, the covering of geotextile, sand or any other material on top of the geomembrane retards the service wear since there is little representation of aggressive factors.
Can LLDPE and HDPE geomembranes be used interchangeably?
The LLDPE Geomembrane and HDPE Geomembrane can be found in many endeavours, which further indicates that they may not act as substitutes for each other, as there are structural variations. LLDPE is the material of choice in instances where there are any irregularities of the surfaces, as it is very flexible, as opposed to HDPE, which is because its embrittlement complements resistance to chemical attack and hence enables effective containment. Rather than the simple case of identifying the best geomembrane, it is important to examine the specific conditions related to the environment, such as how harsh the weather is, microbes as well as the stress load on the geomembrane.
How can regular maintenance improve geomembrane performance?
Regular examination and care are important in order not to allow Geomembranes to lose their quality over time. Minor defaults in the form of cuts, punctures, weld failures, wear, tearing of the surface, and repairs are easily corrected in the early stage, which prevents the failure of the lining. Maintenance strategies should also incorporate cleaning up of rubbish, utilising appropriate agents to repair, health systems, and removal of protective elements such as soils or geotextile coats, when necessary. Such practices allow for more effective member installations in an LLDPE Geomembrane as well as in the HDPE Geomembrane layer.
