Marcus Chen, who is a project engineer based in Kuala Lumpur, was dismayed to see the access road that wasn’t paved turn into mud less than fourteen days into the monsoon season. Rather, they shall put a thick slab of aggregate on top of the soft clay and thus address the issue. Nonetheless, this promise was not upheld. The subgrade was pumped up, the aggregates were also immersed, and the entire surface, costing about $40,000 worth of efficiency and repairs, had to be reconstructed. The missing hervene? A geotextile fabric is placed between the fill and the soft subgrade.
If you are a practicing civil engineer, a contractor, or a procurement buyer, chances are you have encountered this dilemma. Geotextile Fabric is highly used in modern-day construction works; however, the wrong selection of a type or specification, as already described in Marcus’s case, will lead to a calamity. This guide is geared at explaining what this material is, the manner in which it functions, and how to choose the appropriate grade in soil stabilizing, drainage, filtering, as well as reinforcing works.
Eventually, you’ll know the distinctions of geotextiles between woven geotextile and the non-woven geotextile, the ASTM standards that provide such performance, and the useful criteria for both applications and selections within this class of products. Geotextile Fabric

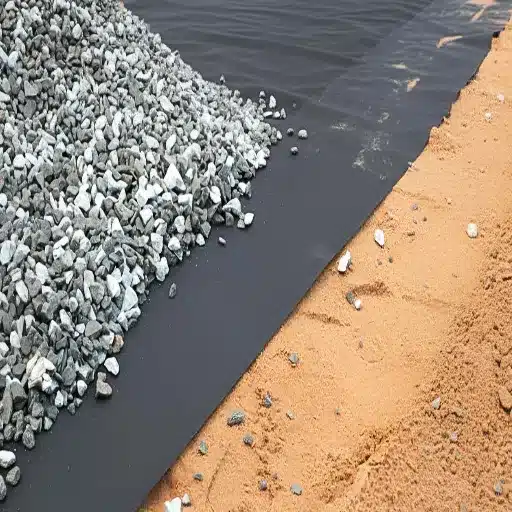

What Is Geotextile Fabric?
Geotextile Fabric is a sort of synthetic material that allows its usage with ground levels since it is permeable. Geotextile designs are contrary to those of HDPE geomembrane imperial liners since water can pass through them without compromising the intended various mechanical practices. The polypropylene PP and polyester PET polymers are usually used to manufacture these textiles, which could be in three main classes of woven, non-woven, and knitted.
Under proper canons of design stand installation, and geotextile fabric qualify for a lifetime of 20 – 50 years. separation, filtration, drainage, reinforcement, and protection. The function of the fabric is determined by the kind of polymer selected, its fabric fabrication, and the weight classification preferred.
Any material has a consequent impact on performance in an execution. Putting a nonwoven geotextile beneath a railway embankment is likely to deform due to loading. A wrapped drainage pipe in a woven geotextile does not clog water, causing floods. Ignoring such thoughts is wrong. These are some of the basic aspects of engineering.

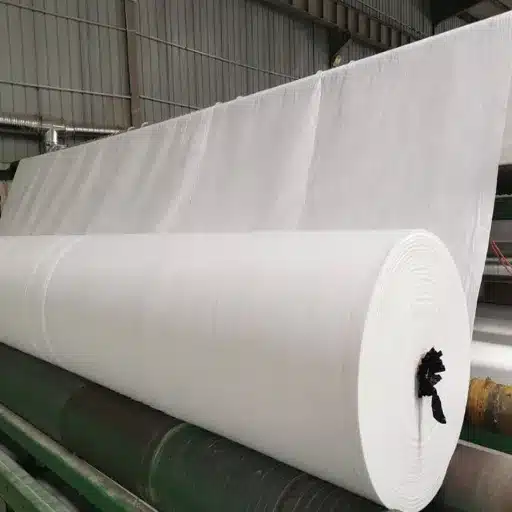

The 5 Core Engineering Functions of Geotextile Fabric
Geotextile Fabric installations are intended to perform at least one of the five fundamental engineering functions, or more. These functions stretch to different classes incorporated in the specification AASHTO, in other words, M288.
1. Separation
Separation hinders the blending of different substances. In road construction, the use of geotextile fabric that is designed between soft subgrade and aggregate base material serves to prevent fine filler soil from pumping upwards into the stone layer, an essential aspect to the integrity and drainage functioning of the aggregate, thus adding a lot of life to the pavement.
2. Filtration
Filtration permits the passage of water and stops the passage of silt. A well-chosen geotextile filtration impedes piping and erosion behind retaining walls, under riprap, and adjacent to subsurface drainage pipe outlets. The key test is with opening. Size of Geotextile (AOS) with reference to ASTM D4751.
3. Drainage
The definition of drainage in the context of geotextile fabrics is that it channels off water from any particular building structure. Nonwovens flex with the needle when hit by water and will require wet bonding to construct bridges and other structures. Geo-textiles and fabrics used in this respect are able to drain off all the impounded water and ensure that the entire structure remains safe.
4. Reinforcement
Added tensile strength is used to reinforce soil. Among the geotextiles woven and unwoven from heavily beaten fabric structures are load distribution units for strong areas, thus usually improving the bearing capacity of weak subgrades to the extent that the aggregate compaction is cut by, say, 20% to 25%, allowing cutting into peat bogs or soft clays which would not be used otherwise.
5. Protection
Protection safeguards geomembranes and waterproof layers from being punctured. In some of the landfill liners, heavy-duty geotextile is usually placed both over and under the HDPE geomembrane to avoid mechanical damage by stones or construction equipment. Such applications demand high puncture-resistant materials tested per ASTM D 6241 standard.

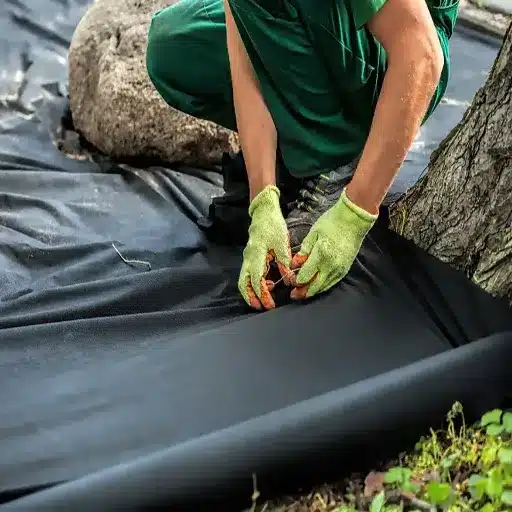

Types of Geotextile Fabric
Choosing the right geotextile starts with an understanding of how it is produced and what mechanical properties are the result of that.
Woven Geotextiles
Woven Geotextiles are produced by interlacing synthetic yarns on a loom. Naturally, the yarns are of the slit-film polypropylene type or high-tenacity polyester. The result is a strong, grid-like fabric with high tensile strength and a low elongation.
Best applications:
- Highway and rail-based reinforcement
- Retaining wall reinforcement and embankment stabilization
- Heavy-load distribution on weak subgrades
- Requirement of the structural strength, at the same time, erosion control
Key standard: The wide-width tensile strength (ASTM D4595) is a test that measures load-bearing capacity in the principal directions. Capital infrastructure, such as highways, bridges, and railways, may require high-tensile-strength woven polyester fabrics to achieve wide-width tensile strengths in excess of 800 kN/m.
Non-Woven Geotextiles
Non-woven geotextiles are produced by binding fibers through the mechanical method of needling, heat-bonding, or chemical bonding. They form a gloss-like structure for easy permeability and conform uniformly. Nonetheless, their tensile strength is less than that of a woven fabric.
Best applications:
- Subsurface drainage and French drains
- Filtration behind retaining walls
- Straw wattles and silk fencing
- Landfill liner protection layers
- Separation loads light-moderate loads
Key standard: Permittivity of a geotextile is measured using ASTM D4491. The higher-quality nonwoven drainage geotextiles do display permittivity values around 1.0 s⁻¹ and sometimes higher.
Knitted Geotextiles
Knitted geotextiles use yarns that are looped in a way that forms a continuous, flexible fabric. Such geotextiles find limited use in routine civil applications; however, they are very efficient in special cases, such as the construction of subdrainage pipe socks. There is often a puncture resistance requirement of 800 N specified by governments for knitted sock geotextiles.

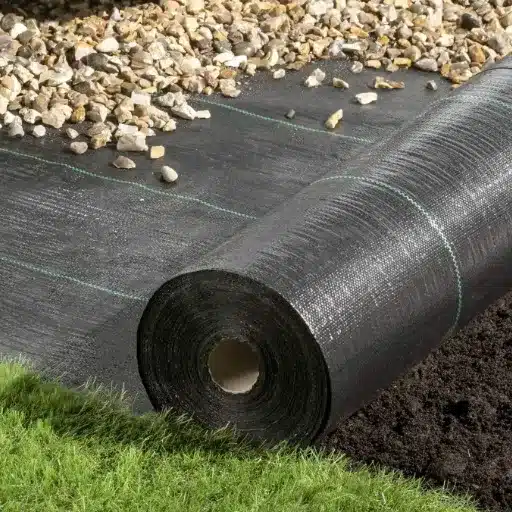

Woven vs Non-Woven Geotextile: How to Choose
Herein lies the success or failure of projects: it lies in the selection of the wrong geotextile fabric, which is one of the principal contributors to the failure of drainage and pavement distress in civil engineering.
A highway project in Dhaka needed to stabilize a road that crossed marshy terrain. The engineering team was planning to use a middle-weight non-woven geotextile at first to save cost. But within months, ruts began forming under heavy truck traffic. A forensic review revealed the fabric had stretched and torn under load. The solution was a high-strength woven geotextile with wide-width tensile strength exceeding 200 kN/m. The rebuilt section has now carried traffic for three years without any significant deformation.
Side-by-Side Performance Comparison
| Property | Woven Geotextile | Non-Woven Geotextile | Best Choice |
|---|---|---|---|
| Tensile strength | High | Moderate | Woven |
| Permeability | Low | High | Non-woven |
| Filtration efficiency | Limited | Excellent | Non-woven |
| Flexibility/conformability | Rigid | High | Non-woven |
| UV resistance | Higher | Moderate | Woven |
| Typical cost per m² | 3.00–3.00–32.40 | 1.30–1.30–11.80 | Non-woven |
| Primary function | Reinforcement/separation | Filtration/drainage | Depends on the project |
Selection Decision Framework
Use this framework to guide specification:
- Load-bearing required? (roads, railways, heavy equipment pads) → Choose woven geotextile.
- Water management critical? (drains, retaining walls, dams) → Choose non-woven geotextile.
- Both load and drainage are needed? (road over wet ground, composite landfill systems) → Use a layered system with woven geotextile for reinforcement and non-woven geotextile for filtration.
Unsure whether your project needs woven or non-woven? Request a technical quote and our team will review your subgrade conditions, load requirements, and drainage needs.

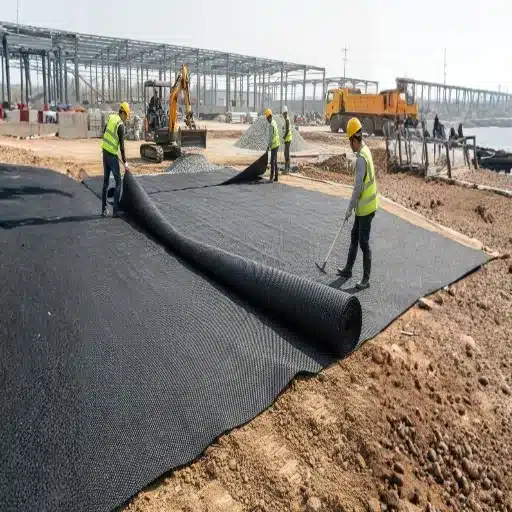

Geotextile Fabric Specifications and Standards
Never should engineering buyers think about their geotextile fabric choice in terms of weight only; standard test methods quantify the true performance by tensile strength, permeability, soil retention, site-specific durability, and resistance.
Critical Performance Properties
- Grab Tensile Strength (ASTM D4632): Standard non-woven grades range from 205–380+ lbs (911–1,691 N). Woven grades often exceed these values significantly.
- Puncture Resistance (ASTM D4833/D6241): 240–500+ lbs are usually listed under standard grades. Severe applications, however, require CBR puncture resistance greater than 800 N.
- Permittivity (ASTM D4491): Measures hydraulic conductivity. Typical values range from 0.23–1.4 sec⁻¹. Drainage applications should target ≥1.0 sec⁻¹.
- Apparent Opening Size – AOS (ASTM D4751): Expressed in US sieve sizes. Filtration applications typically require #80 (0.180 mm) to #100 (0.150 mm).
- Mass Per Unit Area (ASTM D5261): Ranges between 8 and 15 oz/yd. Styles are typically light-duty. Heavyweight structure grades range between 15 oz/yd² (509 g/m²) or more.
- UV Resistance (ASTM D4355): Any top-of-the-line geotextile engineered should bear ≥70% of its tensile strength content after 500 hours of high-level accelerated UV radiation.
AASHTO M288 and 2025 Specification Updates
AASHTO M288 categorizes geotextiles by application, survivability to build, and by construction. The standard establishes functional requirements for separation, filtration, drainage, and erosion type.
Master Construction Specification Doc 02897 of the Government of Newfoundland and Labrador will, by 2025, push forward some strict requirements applied now on a construction site.
- Overlap succeeding strips by at least 600 mm (24 in).
- Anchor lapped midpoints with galvanized steel pins (at least 12 inches).
- Cover the installation within at most 4 hours to prevent degradation caused by UV.
- Seams manufactured in factories or fields will achieve at least 90% of the tensile strength of the parent fabric.
Material Specifications
- Polypropylene demand accounts for 62% of global material models are greatly used in geotextiles as they are excellent in chemistry and very light in quality.
- Polyester has a higher tensile strength and is preferable for a strong creep resistance factor in applications well known for their high-load reinforcement applications.
- pH values from 2 to 13 characterize the chemical resistance, often shown to be acceptable for most soils and leachates.

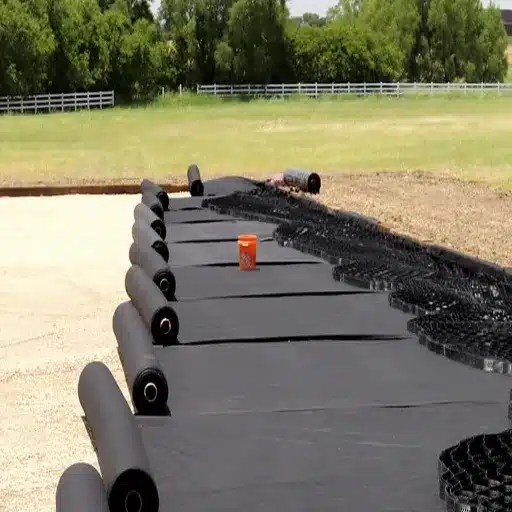

Geotextile Fabric Applications in Civil Engineering
Thus, the geotextile fabric is used in constructing infrastructure in transportation, environmental protection, and even water management. This market of geotextiles will have been assigned the value of approximately $4.3–12.7 billion in 2025. In total, roadway and highway construction contribute about 42% of all geotextile applications.
Road Construction and Pavement
Geotextile fabric is the reinforcement and separation layer that is used in road construction between the subgrade and aggregate base. The engineers will select the right weight class of geotextile fabric with which to shield the subgrade, to match the subgrade strength and traffic loading. If properly installed, one can reduce the thickness of the aggregate from 20% to 25% and double the service of unpaved roads. For asphalt overlays, geotextiles placed between new and old pavement layers will absorb the tensile stresses and delay crack propagation.
Drainage and Filtration Systems
They are among the most commonly cited materials in underdrain trenches, French drains, and behind-the-wall draining systems. The geotextile surrounding the drainage stone or perforated pipe carries out the drainage function while avoiding the fine soil particles from passing through, while allowing water to pass. Such kinds of drain wrapping knitted geotextile socks are specifically developed to exhibit high permittivity and puncture resistance when wrapping subdrainage pipe.
Soil Stabilization and Erosion Control
The fabric helps to prevent the soil from flowing away from a slope, an embankment site, or near a shoreline while still allowing the growth of vegetation. Generally, geotextile soil stabilization applications include the use of woven fabrics as a medium to distribute large loads and reduce slope failure. It is possible that geotextiles with around 90% porosity can help in supporting root penetration, which can make as much as 50% improvement in the stability of even vegetated slopes. Sites featuring construction work use woven geotextiles to form silt fences for filtering sediment from the exiting stormwater of the area.
Landfill and Environmental Protection
In designing environmental pages at the Valencia landfill extension, the environmental engineer sought to protect the HDPE geomembrane lining. The team addressed primary containment of a 400 g/m² non-woven geotextile above and below the HDPE geo-membrane. Three years after capping, a test conducted on the liner showed no perforations in the held regions. The geotextile cushion provides cushioning for daily cover placements and seasonal settlements.
Non-woven thick geotextiles are used in landfill lining systems as footing cushioning over HDPE geomembranes to avoid puncturing by any sharp rock or compaction machinery. These also find use in leachate collection systems and capping layer drainage.

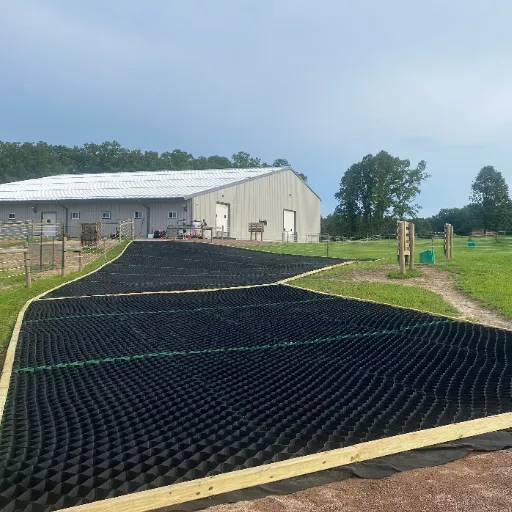

Geotextile Fabric Installation Best Practices
Poorly installed, even the best quality in geotextiles using geotextile fabrics. It was posited in field studies that the improper placement of aggregates will lower by 10% to 15% the lifespan of geotextiles.
Site Preparation
Debris, vegetation, and any other sharp objects are to be removed, and the work area is to be cleared. Subgrade grading provides the filling of normal and generally smooth surfaces, as is visual inspection during which the engineer or owner is present, as generally required by numerous specifications.
Deployment
Unroll the fabric without putting any tension. The fabric should be unrolled on the orb, making it free of folds and creases. For slopes, the fabric should be rolled from a toe to a crest in single lengths as far as possible in the direction of water flow if its main function is to drain.
Overlapping and Seaming
At least 600 mm wide fabric strips should overlap each other. The flaps are secured in the middle with either galvanized steel nails or washers. Factory and site-sewn seams are to be sewn together using a thread of at least as durable a caliber, which commonly may be either polypropylene or Kevlar, and must retain at least 90% of the unaged strength of the fabric itself.
Protection and Cover
Cover the installed geotextile fabric within 4 hours to prevent UV damage. Maintain minimum cover depths of:
- 150 mm for light loads and pedestrian traffic
- 300 mm for heavy equipment and vehicular traffic
Spread overlaying materials evenly. Avoid dropping large aggregates directly onto the fabric from excessive heights.

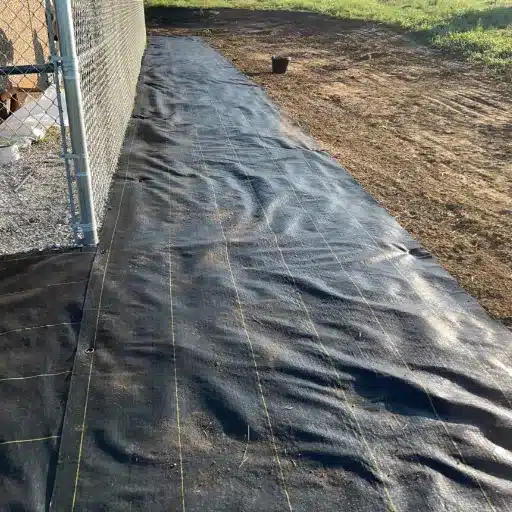

Quality Assurance and Supplier Selection
Not always is the source offering an equal level of quality assurance and technical support. Quality control is a vital feature of factory-made products for important infrastructure. The value of the product is consistent with the price on an individual basis.
Factory Quality Control Indicators
Look at ISO9001 certified quality management systems when looking for the supplier. In terms of the mill test reports, there should be some for every roll, and third-party verification should be on major projects. Some manufacturers have kept samples for quite some time, even to ensure continuity of batches and traceability.
Technical Support Capabilities
Requested review of pre-installation specifications, acceptance of customized products, and direction for application has reduced the risk associated with the incorrect selection of materials. For international projects, their supplier provides them with export-ready documentation, packaging compliant with quality standards, and dependable logistics tracking.
Shanxi Shengxing supplies woven geotextiles for soil reinforcement, non-woven geotextiles for drainage/filtration, and HDPE geomembrane liners for composite containment systems. You get both the material and project uncertainties reduced when you buy geotextile fabric from a manufacturer with ISO9001 quality systems and exporting experience.
Ready to specify geotextile fabric for your next project? Contact engineering support to request product specifications, a technical quote, or a customized recommendation.
Conclusion
Geotextile fibers are not an average or ordinary construction supply. They come engineered for specific mechanical problems in soil stabilization, drainage, filtration, and environmental protection. The differences-woven or non-woven, weight class, ASTM compliance, and installation method-decide the basic service delivery and lifetime cost to the project.
Here are the essential takeaways:
- Match the fabric type to the function: Woven for load-bearing, non-woven for water management.
- Reference ASTM and AASHTO standards: Specifications like D4632, D4491, D4751, and M288 provide objective performance benchmarks.
- Follow 2025 installation protocols: 600 mm overlaps, 4-hour cover limits, and proper seam strength to protect your investment.
- Consider total project economics: The right geotextile can reduce aggregate needs by 20% to 25% and prevent costly reconstruction.
- Choose a supplier with engineering support: Factory QC, technical consultation, and global logistics capability reduce risk on complex projects.
When properly defined, graded, and installed, geotextiles can change marginal soils into pavement-like surfaces – practically eternal roads on which critical infrastructure may ride. The grade determines the plant’s impact on how many geotextiles are spread on numerous roads and the expenses to make the complicated tasks lighter and cost-effective.
