Choose a woven geotextile when you need load-bearing reinforcement and separation under heavy loads; choose a nonwoven geotextile when you need filtration, drainage, or protection of a liner. The two fabric types are not interchangeable, and selecting the wrong one is the most common specification error in geosynthetic design.
Marcus Chen learned this the hard way. In 2024, his Jakarta-based contracting firm specified a 200 gsm nonwoven geotextile for a heavy-haul access road over soft subgrade. Within three weeks, the fabric stretched, rutted, and failed under truck loads. The project stalled for 11 days, racking up $34,000 in liquidated damages. The correct specification? A high-tensile woven geotextile with grab tensile strength above 1,100 N.
If you are comparing materials for an upcoming project, this geotextile selection guide gives you exactly what you need: the manufacturing difference, side-by-side ASTM specification data, an engineering decision framework, cost-per-square-meter ranges, and real project outcomes that show what happens when the choice is right and when it goes wrong.
Key Takeaways
- Woven geotextiles deliver 700–2,500 N grab tensile strength and only 5–25% elongation, making them the default for soil reinforcement, subgrade stabilization, and separation under load.
- Nonwoven geotextiles provide 400–1,400 N grab tensile strength with 30–80% elongation and permittivity roughly 5–10 times higher than wovens, making them the default for filtration, drainage, and liner protection.
- Woven yarn type matters: slit-film wovens drain poorly, monofilament wovens can filter, and multifilament wovens offer the highest strength-to-weight ratio.
- Cost typically runs $0.20–2.00/m² for nonwovens and $0.40–3.00/m² for wovens at bulk FOB pricing; woven is 15–40% more per m² but cheaper per unit of tensile strength.
- Around 80% of geotextile failures trace back to improper selection or installation, not material defects. Match the fabric construction to the primary function and you avoid most failures.

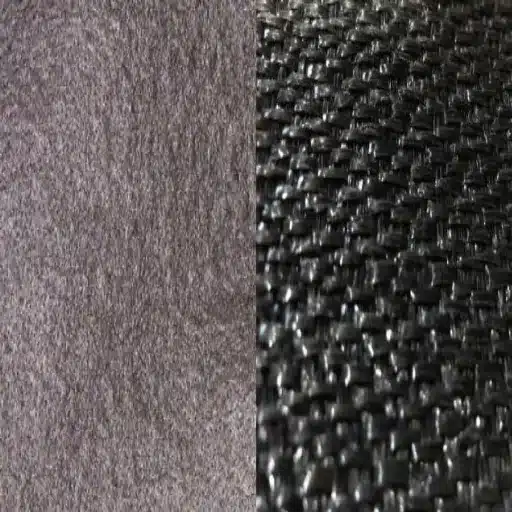

What’s the Difference Between Woven and Nonwoven Geotextile?
A woven geotextile is made by interlacing warp and weft yarns on a loom, creating a strong, grid-like fabric with high tensile strength and low elongation. A nonwoven geotextile is made by bonding randomly oriented fibers through needle-punching, heat, or chemicals, creating a felt-like fabric with high permeability and elongation. Woven fabrics are chosen for reinforcement and separation; nonwoven fabrics are chosen for filtration, drainage, and protection.
The two manufacturing routes produce fabrics with opposite engineering personalities. That is why “woven vs nonwoven geotextile” is a decision about function, not quality. Each fabric solves problems the other cannot. Industry bodies like the Advanced Textiles Association and the textiles.org guide on woven vs nonwoven fabrics describe the same functional split.
Woven vs Nonwoven: Side-by-Side Specification Comparison
The table below summarizes the critical engineering differences. Values are typical ranges for standard civil engineering grades.
| Property | Woven Geotextile | Nonwoven Geotextile | ASTM Test Method |
|---|---|---|---|
| Manufacturing | Warp/weft yarn interlacing | Needle-punched or heat-bonded fiber web | D4439 |
| Grab tensile strength | 700–2,500 N | 400–1,400 N | D4632 |
| Elongation at break | 5–25% | 30–80% | D4632 |
| Wide-width tensile | 20–400+ kN/m | 8–120 kN/m | D4595 |
| CBR puncture resistance | 1,500–4,500 N | 1,200–3,500 N | D6241 |
| Trapezoidal tear | 250–750 N | 150–500 N | D4533 |
| Permittivity | 0.05–0.5 sec⁻¹ | 0.5–5.0 sec⁻¹ | D4491 |
| Apparent opening size (AOS) | 0.10–0.60 mm | 0.05–0.30 mm | D4751 |
| Strength distribution | Anisotropic (warp > weft) | Isotropic or near-isotropic | D4595 |
| UV resistance | Good to excellent | Moderate to good | D4355 |
| Typical weight range | 90–270 gsm | 100–600 gsm | D5261 |
Two numbers deserve extra attention. Elongation separates the families at a glance: woven fabrics stretch 5–25%, while nonwovens stretch 30–80%. Permittivity, a measure of water flow through the fabric, is roughly 5–10 times higher in nonwovens. High strength with low stretch makes wovens ideal for carrying load. High flow with high stretch makes nonwovens ideal for managing water and conforming to irregular ground.
For a full breakdown of the standard test methods behind these values, see our geotextile ASTM standards explainer and the types of geotextile fabric guide.

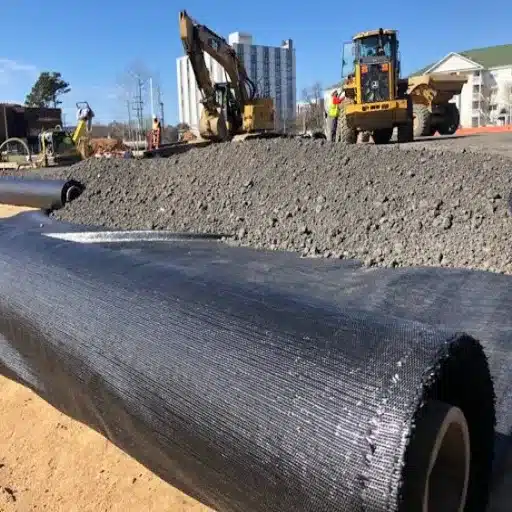

What Is Woven Geotextile?
A woven geotextile is a planar textile produced by interlacing two sets of yarns, called warp and weft, on a loom. This manufacturing method creates a fabric with predictable, directional strength and relatively low elongation under stress.
Manufacturing Process
Woven geotextiles begin as polypropylene (PP) or polyester (PET) yarns arranged in perpendicular directions. The warp yarns run lengthwise, the weft yarns crosswise, and the loom interlaces them in a repeating pattern to create a stable grid. The result is anisotropic: tensile strength is typically higher in the warp direction than the weft, a factor engineers must account for during installation orientation.
Woven Yarn Types: Slit-Film vs Monofilament vs Multifilament
“Woven” is not one product. Three distinct yarn constructions dominate the market, and they behave very differently:
- Slit-film yarn: A flat tape produced by slitting an extruded polymer sheet. Slit-film wovens offer high tensile strength at low cost but poor permeability and limited opening-size consistency. They are a poor choice for drainage or filtration.
- Monofilament yarn: A single, round continuous filament. Monofilament wovens provide good permeability and a consistent apparent opening size (AOS), which makes them the only woven type suitable for filtration applications.
- Multifilament yarn: Multiple fine filaments twisted together. Multifilament wovens combine high strength with improved flexibility and fabric integrity, delivering the best strength-to-weight ratio for demanding stabilization projects.
This distinction is one of the most under-explained topics in the industry, yet it determines whether a woven fabric can perform a drainage role at all. For a deep dive, see our slit-film vs monofilament woven geotextile guide.
Key Mechanical Properties
Woven geotextiles are valued for load-bearing capacity. Typical values include:
- Grab tensile strength: 700–2,500 N
- Elongation at break: 5–25%
- CBR puncture resistance: 1,500–4,500 N
- Trapezoidal tear strength: 250–750 N
These values vary significantly with yarn type and weight. A slit-film woven at 140 gsm might achieve 700–900 N grab tensile, while a multifilament woven at 230 gsm can exceed 2,000 N.
Primary Functions
Woven geotextiles excel at three core functions:
- Reinforcement: Distributing loads across soft subgrades and reducing aggregate base thickness by 25–40%.
- Separation: Preventing intermixing of dissimilar soil layers, such as subgrade soil and aggregate base.
- Stabilization: Confining soil particles and improving the effective bearing capacity of weak foundations.
For common woven geotextile applications, yarn type and ASTM test values matter more than weight alone. Browse our high-tensile woven geotextile products for specification details.

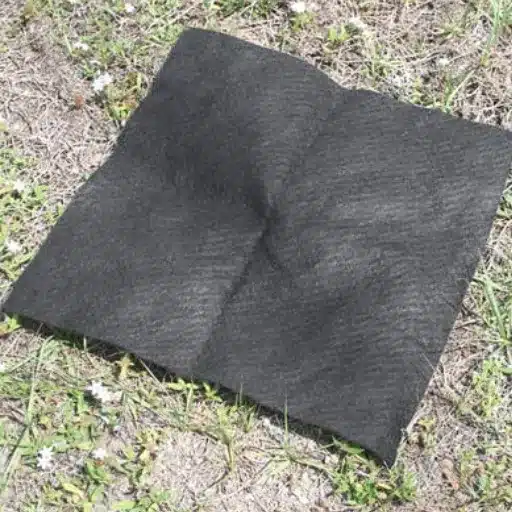

What Is Nonwoven Geotextile?
A nonwoven geotextile is manufactured from randomly oriented fibers bonded by mechanical, thermal, or chemical means. Unlike woven fabrics, nonwovens have no yarn interlacing and exhibit more isotropic strength.
Manufacturing Process
Nonwoven production follows a different path:
- Fiber preparation: PP or PET fibers are carded into a loose web with random orientation.
- Bonding: The web is consolidated using one or more methods:
- Needle-punching: Barbed needles mechanically entangle fibers, creating a thick, porous felt-like structure. This is the most common method for civil engineering grades.
- Heat-bonding: Calendering or through-air heating partially melts fiber surfaces to fuse them. Heat-bonded nonwovens are thinner and stiffer, and they are generally poor filters.
- Chemical bonding: Adhesives or resin binders hold fibers together. Less common for geotechnical grades.
Needle-punched nonwovens dominate filtration and drainage applications because their entangled fiber matrix creates a tortuous flow path with high void content.
Key Mechanical Properties
Nonwoven geotextiles trade some tensile strength for flexibility and hydraulic performance:
- Grab tensile strength: 400–1,400 N
- Elongation at break: 30–80%
- CBR puncture resistance: 1,200–3,500 N
- Trapezoidal tear strength: 150–500 N
High elongation is not a weakness. In many applications, the ability to deform without rupturing lets a nonwoven conform to irregular subgrades and absorb settlement stresses that would tear a stiffer fabric.
Hydraulic performance is where nonwovens distinguish themselves. Permittivity typically ranges from 0.5 to 5.0 sec⁻¹, and AOS ranges from 0.05 to 0.30 mm, enabling effective filtration across a broad spectrum of soil gradations.
Primary Functions
Nonwoven geotextiles are specified for four primary functions:
- Filtration: Allowing water to pass while retaining soil particles, critical in French drains, retaining wall drainage, and coastal protection.
- Drainage: Providing a lateral flow path for water collection and discharge.
- Erosion control: Protecting soil surfaces from scour and washout beneath rip rap or armor stone.
- Protection: Cushioning geomembranes in landfill and containment applications against puncture from subgrade aggregates.
When nonwoven geotextile drainage and filtration drive your design, a needle-punched fabric is typically the correct starting point. Browse nonwoven geotextile specifications →
How to Choose: The Engineering Decision Framework
Selecting between woven and nonwoven geotextile begins with one question: what is the primary function the fabric must perform?
Choose Woven When…
Your project requires load-bearing performance. Specify woven geotextile when:
- The design calls for soil reinforcement or subgrade stabilization
- Aggregate base thickness reduction is a project goal
- The fabric must bridge over soft spots with minimal elongation
- Grab tensile strength above 1,000 N is required by design
- The application is road construction, railway embankments, or working platforms over weak soils
Decision check: If your engineer is calculating tensile modulus or strain compatibility with fill materials, you are in woven territory. Also consider yarn type: slit-film is economical for separation, monofilament adds filtration, and multifilament delivers the highest strength for demanding stabilization.
Choose Nonwoven When…
Hydraulic performance governs the design. Specify nonwoven geotextile when:
- Filtration and drainage are the primary functions
- The fabric must conform to irregular or variable subgrades
- Protection of an underlying geomembrane or liner is required
- Erosion control beneath rip rap or articulated concrete blocks is the goal
- High permittivity and controlled AOS are specified
Decision check: If your design references AOS, permittivity, or flow rate per unit width, nonwoven is the logical starting point. For clay-rich or fine-grained soils, a needle-punched nonwoven with an AOS matched to the soil gradation is preferred, because wovens clog more readily with migrating fines.
Choose Both When…
Some projects demand multi-function performance that neither fabric delivers alone. Composite systems layer woven and nonwoven geotextiles to achieve reinforcement and drainage in the same structure. Common configurations include:
- Road over soft soil: Woven geotextile at the subgrade interface for stabilization, with a nonwoven layer above for separation and lateral drainage.
- Landfill liner protection: Heavy nonwoven geotextile directly over the geomembrane for puncture protection, with a woven layer above for structural support during waste placement.
- Coastal revetment: Woven monofilament geotextile as a structural filter beneath armor stone, combining the strength of woven construction with the permeability of monofilament yarns.
Composite and layered systems are more common on real projects than most guides admit. For the engineering detail on combining both fabrics, see can you use woven and nonwoven geotextile together.
Weights, GSM & AASHTO Survivability Classes
Geotextile weight is specified differently for each family, which confuses many buyers.
Nonwovens are specified by weight. You will see “4 ounce,” “8 ounce,” or “300 gsm” nonwovens because weight correlates with thickness, puncture resistance, and flow. Common residential and light commercial grades are 4–8 oz/sq yd (approximately 135–270 gsm).
Wovens are specified by strength. Engineers select wovens on grab tensile (in N or lbs) or wide-width tensile (in kN/m), because the same yarn type can be woven at different densities. Weight alone does not tell you whether a woven can carry the required load. For a practical reference, see our 200 lbs woven geotextile guide and 4 oz nonwoven geotextile guide.
AASHTO M288 provides survivability classes that map directly to fabric selection:
- Class 1 (highest survivability, most severe installation): typically requires high-strength wovens or heavy nonwovens above 400 gsm.
- Class 2 (moderate): often satisfied by medium-weight wovens or 200–300 gsm nonwovens.
- Class 3 (least severe): lighter nonwovens and low-strength wovens for gentle installation conditions.
The correct class depends on installation severity, not just load. Even a strong fabric can be punctured during placement if its survivability class does not match the subgrade and aggregate conditions. Our geotextile GSM weight guide maps weights, strengths, and AASHTO classes in detail.
When to Use Woven vs Nonwoven: Application-by-Application
Theory is useful, but projects are where the choice becomes concrete. Here is how the woven vs nonwoven decision plays out across the most common applications.

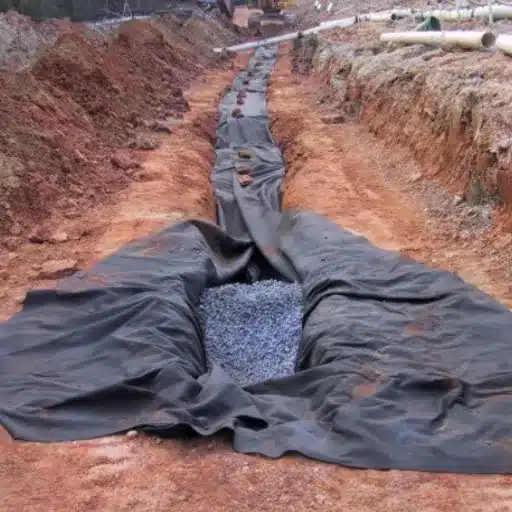

French Drains & Subsurface Drainage
Nonwoven is the consensus choice for French drains. A needle-punched nonwoven at 4–6 oz (about 135–200 gsm) lets water flow freely while blocking soil fines that would otherwise clog the drain rock. Wrap the entire trench burrito-style: line the trench, lay gravel and perforated pipe, then fold the fabric over the top before backfilling. Using a woven weed barrier here is a leading cause of French drain failure, because its tighter weave clogs with fine soil and creates a hydraulic plug. For full guidance, see best geotextile for French drain.
Roads & Soil Stabilization
Woven geotextiles are preferred for reinforcement over soft subgrades. Their high tensile strength and low elongation distribute truck loads, reduce lateral spreading, and resist rutting. Field research on a CBR 2.5 subgrade found a woven geotextile delivered a traffic benefit ratio of 1.31 versus 1.17 for nonwoven. Where filtration is also required, a heavy nonwoven or a layered system handles separation and drainage. For the complete engineering comparison, see woven vs nonwoven geotextile for road construction, and for application basics our geotextile fabric guide for road construction and geotextile soil stabilization guide.
Gravel Driveways & Paver Patios
Woven geotextile is the structural choice under driveways and paver bases. It prevents gravel from punching down into the soil and stops rutting under vehicle traffic, sometimes called the “snowshoe effect.” A nonwoven can still be used where water management matters, but for load-bearing hardscaping, woven wins. See geotextile for gravel driveway: woven or nonwoven for the full breakdown.
Retaining Walls
Most well-built retaining walls use both. Woven geotextile provides internal soil reinforcement in mechanically stabilized earth (MSE) walls, while a nonwoven behind the wall handles drainage and filtration to prevent hydrostatic pressure buildup. Choosing one fabric for both roles is usually a compromise. Our geotextile for retaining wall: woven or nonwoven guide explains the dual-role design.
Erosion Control on Slopes & Shorelines
The choice depends on hydraulic gradient. For riprap filter layers and high-gradient coastal revetments, a woven monofilament geotextile with high percent open area (POA) is favored because it resists clogging and allows fines to pass until a natural graded filter develops. For slopes, channels, and sediment control where flow rates are moderate, a heavy needle-punched nonwoven performs well and conforms to the ground. Compare both in our geotextile for erosion control: woven or nonwoven guide.
Under Concrete Slabs & Foundations
Woven geotextile is specified under slabs when load distribution and bridging over voids matter. It separates the slab from subgrade while distributing load and resisting puncture from sharp aggregate. A nonwoven is added where moisture management and vapor mitigation are concerns, working with a capillary break. See geotextile under concrete slab for the detail.
Geotextile vs Landscape Fabric
Engineering geotextile is not the same as cheap landscape fabric. Many consumer “weed barriers” are perforated film that blocks water flow, while a true woven or nonwoven geotextile is engineered for filtration, drainage, and load. If you are a DIY buyer, know which product you are actually purchasing. Our geotextile vs landscape fabric guide clears up the confusion.
Common Selection Mistakes
Even experienced engineers occasionally specify the wrong fabric type. These are the four most costly errors.
Mistake 1: Using nonwoven geotextile for heavy-load reinforcement. A 250 gsm needle-punched nonwoven may feel substantial, but its 600–800 N grab tensile is insufficient for heavy haul roads or railway embankments. The high elongation that makes nonwovens excellent filters becomes a liability under cyclic loading. The fabric stretches, ruts form, and the subgrade loses confinement.
Always verify grab tensile exceeds the design requirement.
Mistake 2: Using woven geotextile for fine-grained soil filtration. A standard slit-film woven with an AOS of 0.25 mm will not retain silts and fine sands. Water passes through, but so does soil. Over time, the drainage layer clogs with migrating fines. For soils with d₈₅ below 0.075 mm, nonwoven geotextiles with AOS below 0.15 mm are typically required.
Mistake 3: Ignoring yarn type within the woven category. A slit-film woven fabric has permittivity roughly one-tenth that of a monofilament woven at similar weight. If your woven specification includes a drainage or filtration function, yarn type determines whether the fabric can actually perform that role. This is why we treat woven yarn construction as a first-class design variable in our slit-film vs monofilament woven geotextile guide.
Mistake 4: Selecting by cost instead of function. Nonwoven at $0.40/m² looks attractive next to woven multifilament at $2.00/m². But using the cheaper fabric in a load-bearing application invites failure economics. Marcus Chen’s $34,000 penalty was roughly 850 times the price difference between the nonwoven he specified and the woven geotextile he should have used.

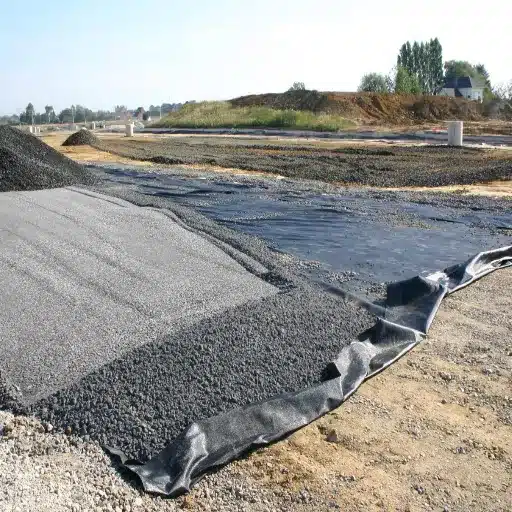

Real Project Outcomes
Field performance confirms the engineering. These three cases show what correct and incorrect selection look like in practice.
Case A: Southeast Asia Highway Stabilization. Engineers on a provincial highway faced a subgrade with a California Bearing Ratio (CBR) of 0.8. Without treatment, the design required 450 mm of aggregate base. By placing a 1,500 N grab tensile woven geotextile directly on the prepared subgrade, the team cut aggregate thickness to 300 mm. Three monsoon seasons later, the road remains serviceable with no measurable rutting. The woven geotextile paid for itself through material savings alone.
Case B: Texas French Drain Recovery. A residential developer in Austin installed a perimeter French drain without geotextile wrap. Within 18 months, clay fines infiltrated the drain rock and sealed the system. Standing water returned to the foundation line. The remediation team excavated the failed drain, wrapped the replacement rock in a 250 gsm nonwoven with AOS of 0.15 mm, and restored free flow. The nonwoven cost $0.55/m². The excavation and rebuild cost $12,000. The math is simple.
Case C: Jakarta Heavy-Haul Failure. Marcus Chen’s project, referenced earlier, is worth examining in detail. The specification called for a geotextile to stabilize a temporary haul road over marshy subgrade. Procurement selected a 200 gsm nonwoven based on availability and low unit cost. The fabric achieved only 550 N grab tensile.
Under the first fully loaded dump truck, the fabric elongated beyond recovery, allowing aggregate punch-through into the soft subgrade. The 11-day delay triggered $34,000 in liquidated damages. A 1,200 N woven slit-film geotextile at $0.85/m² would have prevented the failure entirely.
These stories illustrate the same lesson: the cost of wrong selection dwarfs the cost of the right material. If you want help avoiding similar failures, contact engineering support with your subgrade data and design loads.
Cost Comparison: Woven vs Nonwoven per Square Meter
Price should never drive specification, but budget reality matters. Understanding cost structures helps you justify the right material to stakeholders.
Price per m² by type and weight (2026 estimates, bulk FOB):
| Fabric Type | Weight Range | Cost per m² |
|---|---|---|
| Light nonwoven (needle-punched) | 100–150 gsm | $0.20–0.60 |
| Slit-film woven | 90–140 gsm | $0.40–0.90 |
| Medium nonwoven (needle-punched) | 150–300 gsm | $0.40–1.20 |
| Monofilament woven | 130–200 gsm | $0.80–1.80 |
| Heavy nonwoven (needle-punched) | 300–600 gsm | $0.80–2.00 |
| Multifilament woven | 180–270 gsm | $1.50–3.00 |
The key economic insight: woven fabric is generally 15–40% more expensive per square meter than nonwoven of similar weight, but it is cheaper per unit of tensile strength. When the job is reinforcement, woven can be the lower-cost answer per kN of load capacity. When the job is filtration or drainage, nonwoven delivers the required hydraulic performance at the lowest price.
Lifecycle value analysis reveals the true cost picture. A woven geotextile that reduces aggregate base by 30% often saves $3–8/m² in material and haul costs, far exceeding the fabric premium. A nonwoven that prevents drain failure avoids remediation costs 50–100 times the initial fabric expense. For a full pricing comparison by type, weight, and order volume, see woven vs nonwoven geotextile cost, and for broader fabric pricing, our geotextile fabric cost per square meter guide.

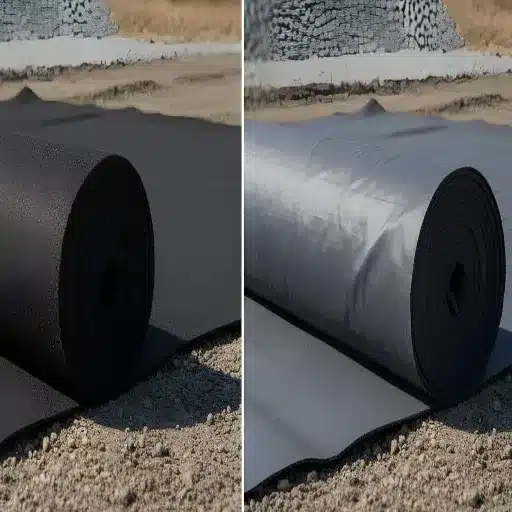

UV Resistance & Service Life
UV resistance is a common point of confusion between the two fabric types. Woven geotextiles generally retain 70–90% of their strength under accelerated UV testing, while nonwovens retain roughly 50–80% (ASTM D4355). The denser yarn structure of wovens exposes less polymer surface area to UV, giving them a modest edge in prolonged sun exposure. That said, both types incorporate carbon black or UV stabilizers, and both must be covered within a defined exposure window during installation.
Practical exposure limits are typically 14 days for lightweight fabrics, 21 days for medium weights, and up to 30 days for heavy, carbon-black-stabilized grades. Any geotextile left exposed longer should be covered or specified with enhanced UV protection.
Once buried, both woven and nonwoven geotextiles enjoy service lives measured in decades because UV, oxygen, and temperature cycling are largely excluded. Correctly specified and installed geotextiles routinely last 20–50 years underground. For the degradation science and protection measures, see woven vs nonwoven geotextile UV resistance & lifespan.
Frequently Asked Questions
Which is better, woven or nonwoven geotextile?
Neither is universally better. Woven geotextile is better for reinforcement, stabilization, and separation under load. Nonwoven geotextile is better for filtration, drainage, and liner protection. Select based on the primary function your project requires.
Does water pass through woven geotextile?
Standard slit-film woven geotextiles have low permeability and pass little water. Woven monofilament geotextiles, however, are designed with a high percent open area and allow water to pass while retaining soil, making them suitable for reinforced filtration applications.
Can you use woven and nonwoven geotextile together?
Yes. Composite systems layer both fabrics to solve multi-function problems, such as a nonwoven filter over a woven reinforcement in roads, landfills, and coastal structures. The can you use woven and nonwoven geotextile together guide explains the configurations.
What weight geotextile do I need for a French drain?
A needle-punched nonwoven in the 4–6 oz (135–200 gsm) range is the standard recommendation for residential French drains. Match the AOS to your native soil gradation to prevent clogging.
How long does geotextile last?
Correctly specified and buried geotextiles typically last 20–50 years. UV exposure is the main threat during installation, which is why fabrics must be covered within their rated exposure window.
Is nonwoven geotextile cheaper than woven?
Generally yes, on a per-square-meter basis, nonwoven is cheaper than woven of similar weight. But woven is cheaper per unit of tensile strength, so total installed cost depends on what the fabric must do.
Conclusion
The woven vs nonwoven geotextile decision is not about finding the “better” fabric. It is about matching material properties to project function. Woven geotextiles deliver strength, low elongation, and load-bearing capacity. Nonwoven geotextiles deliver permeability, filtration precision, and subgrade conformity.
Use the specification comparison table to benchmark your design requirements against fabric capabilities. Apply the engineering decision framework to confirm whether your project needs reinforcement, drainage, or both. And remember Marcus Chen’s $34,000 lesson: the cost of wrong selection dwarfs the cost of the right material.
If you are specifying geotextile for an upcoming project, our engineering team can review your subgrade data, design loads, and hydraulic requirements to recommend the optimal fabric type, weight, and yarn construction. We supply both woven and nonwoven geotextiles with ISO9001 quality systems, mill test reports, flexible order quantities, and export-ready global delivery.
